概要

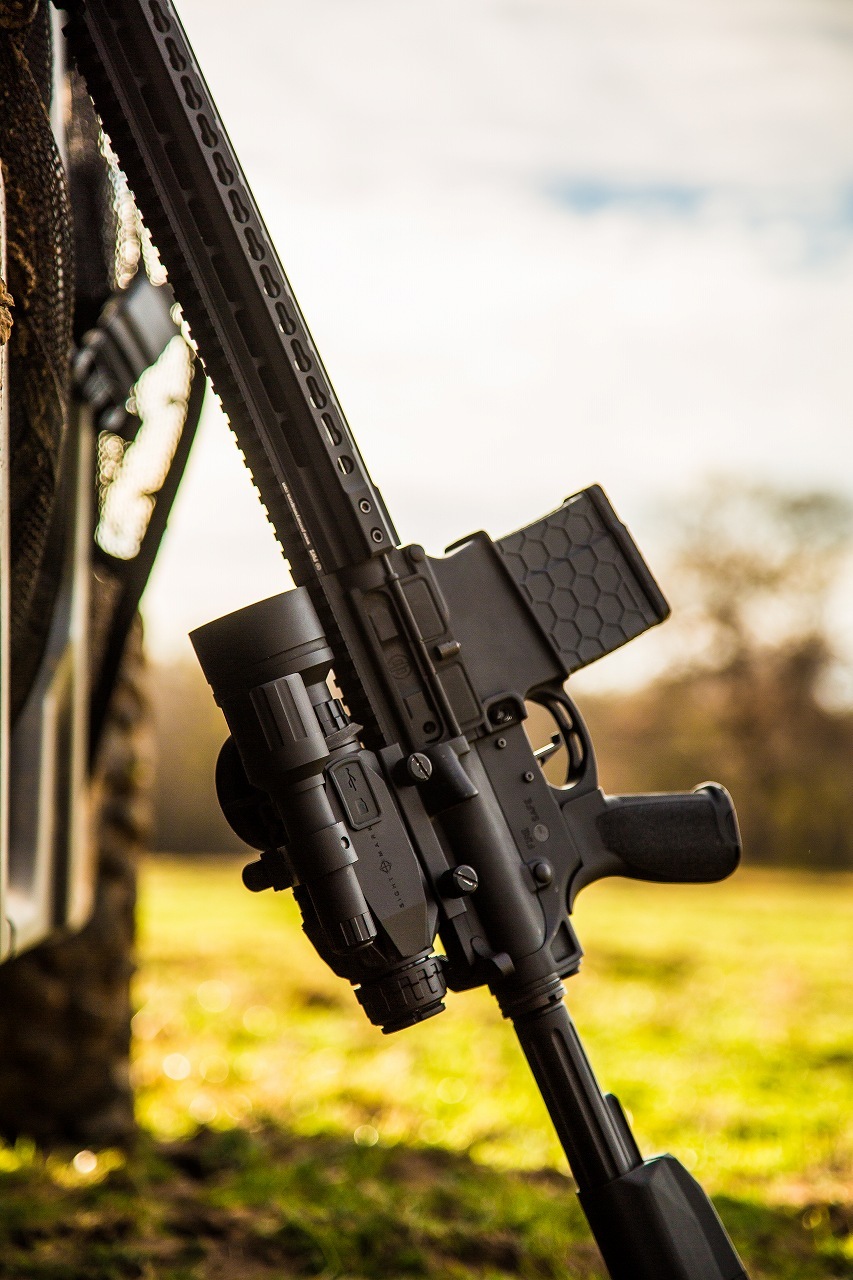

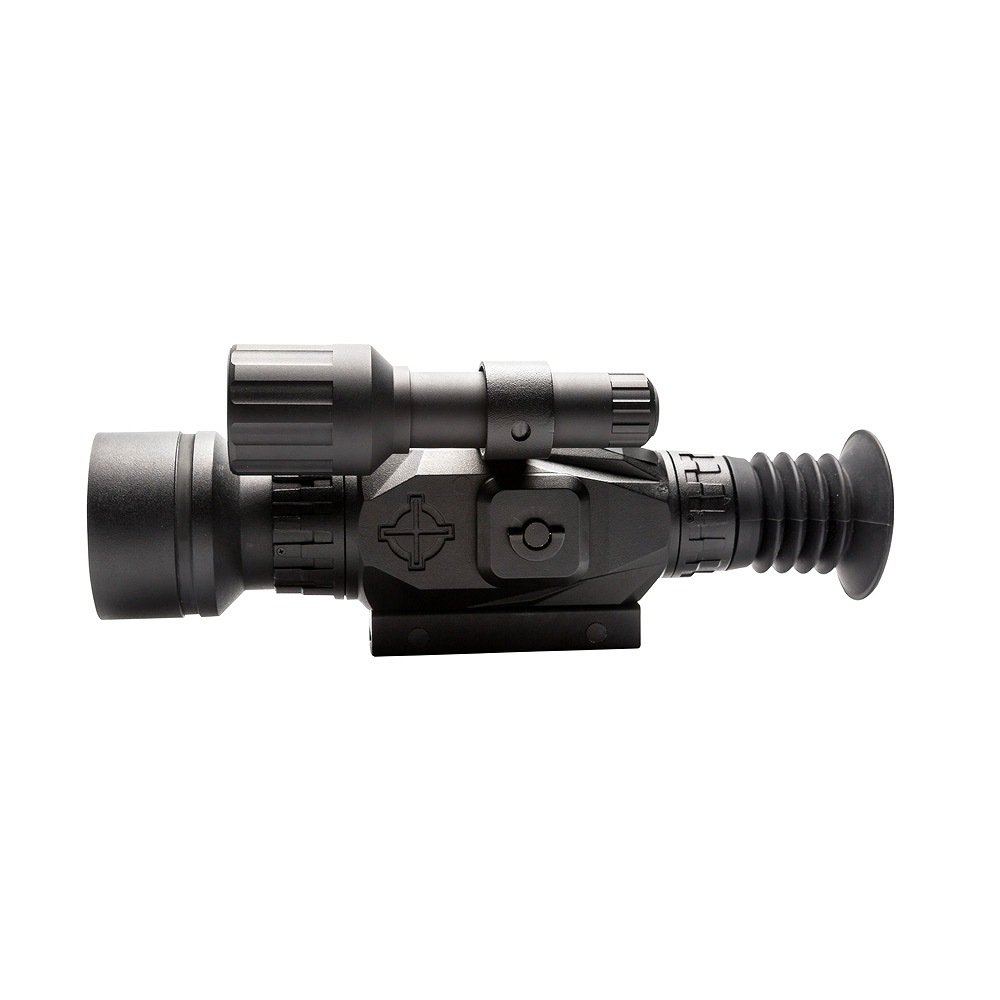

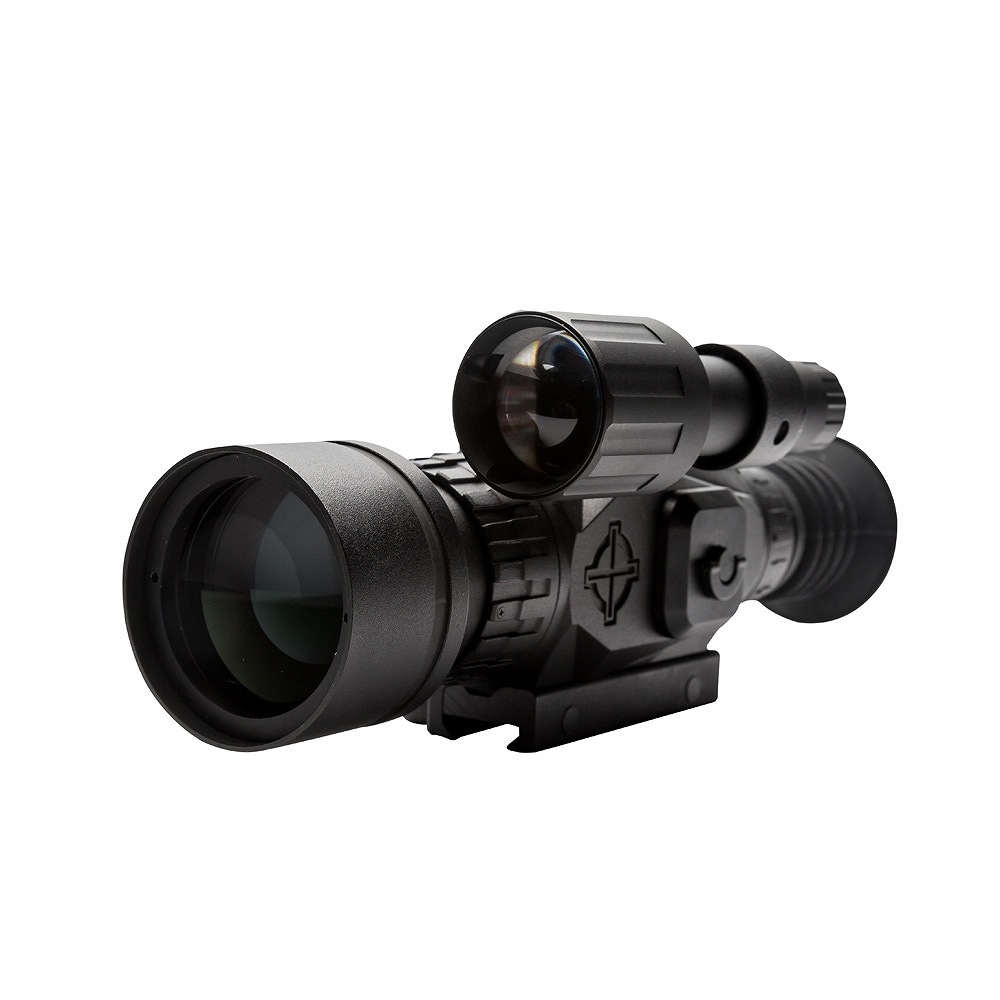

See the future in high definition with the new Sightmark Wraith 4-32x50mm Digital Riflescope.

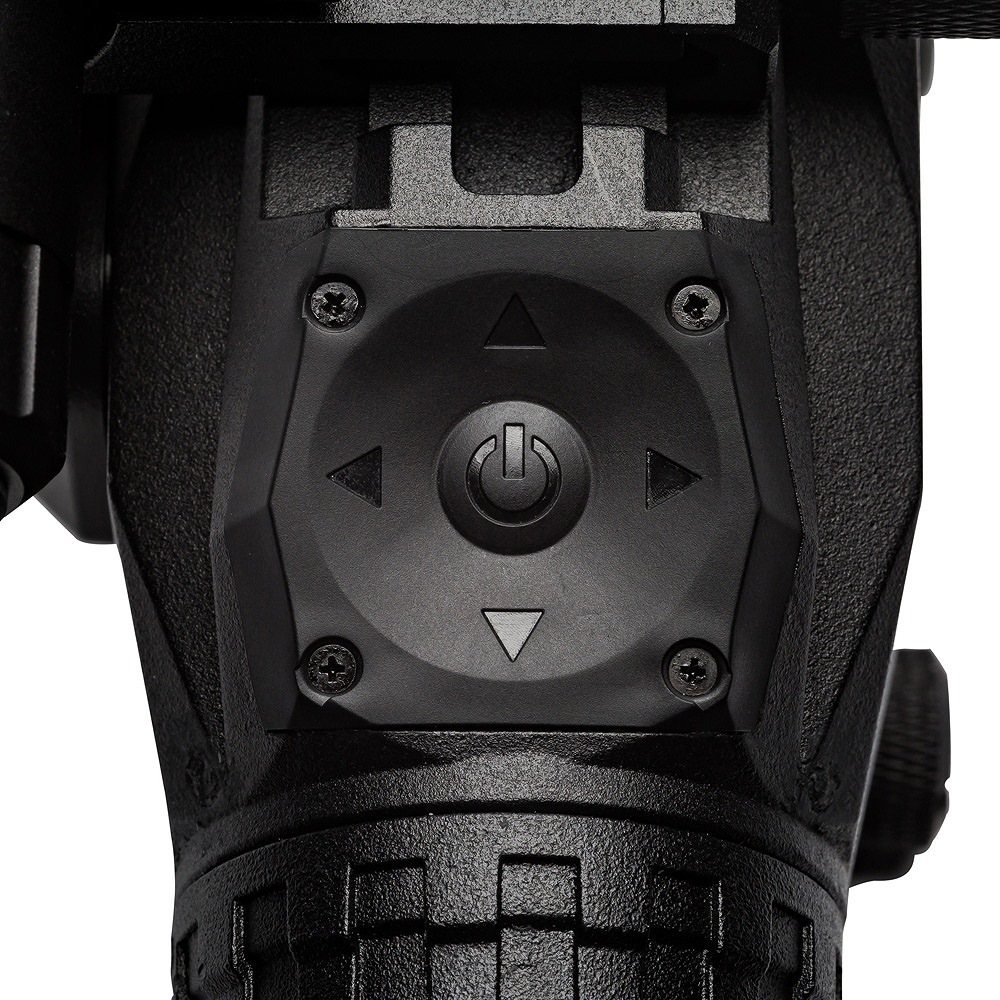

Hunt with an advanced 1920x1080 HD sensor, providing full-color clarity in daytime; simply hit the left arrow to switch to night mode ? with classic emerald or black and white viewing options.

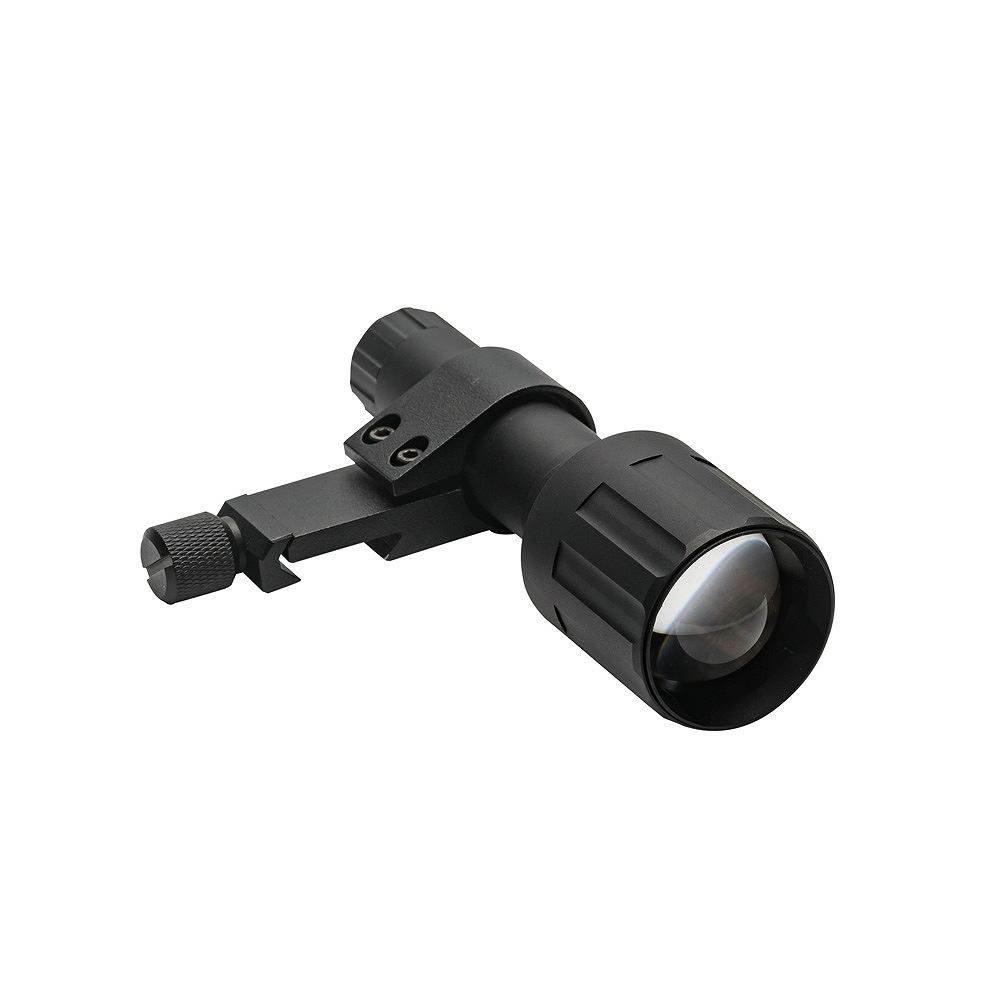

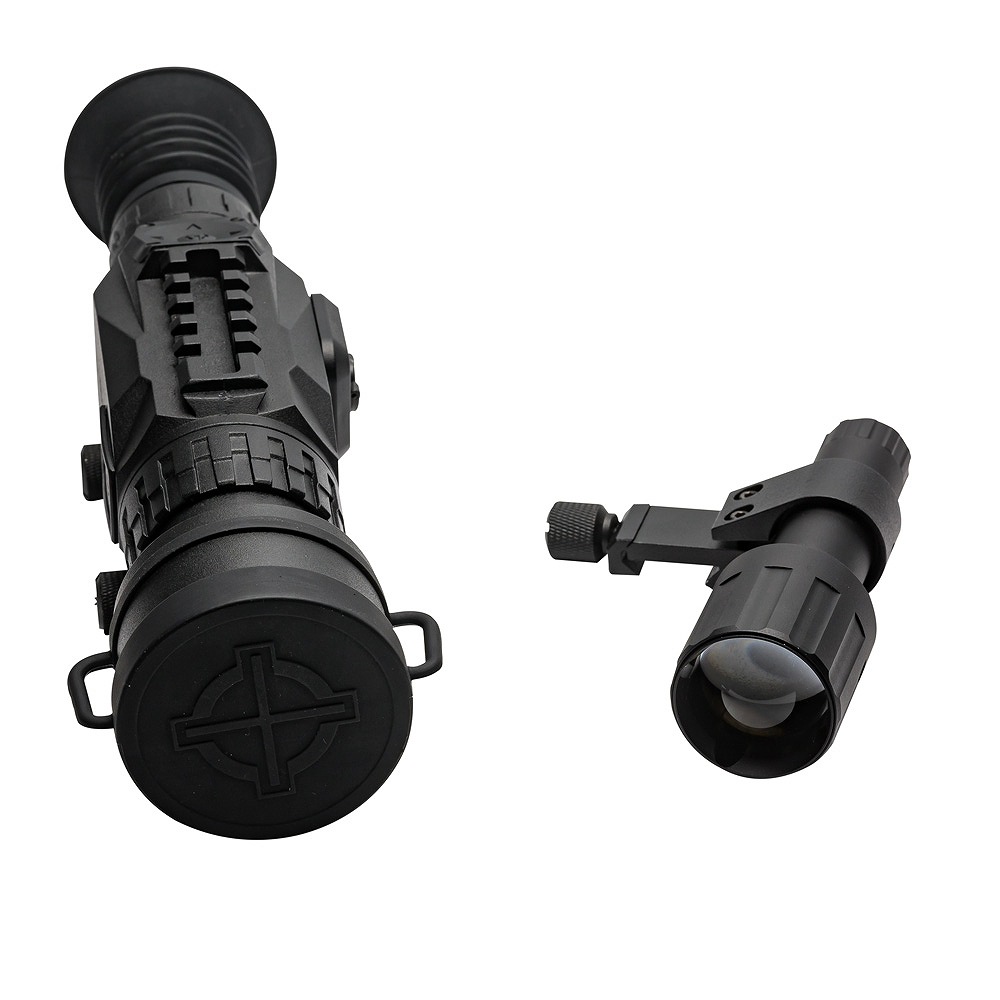

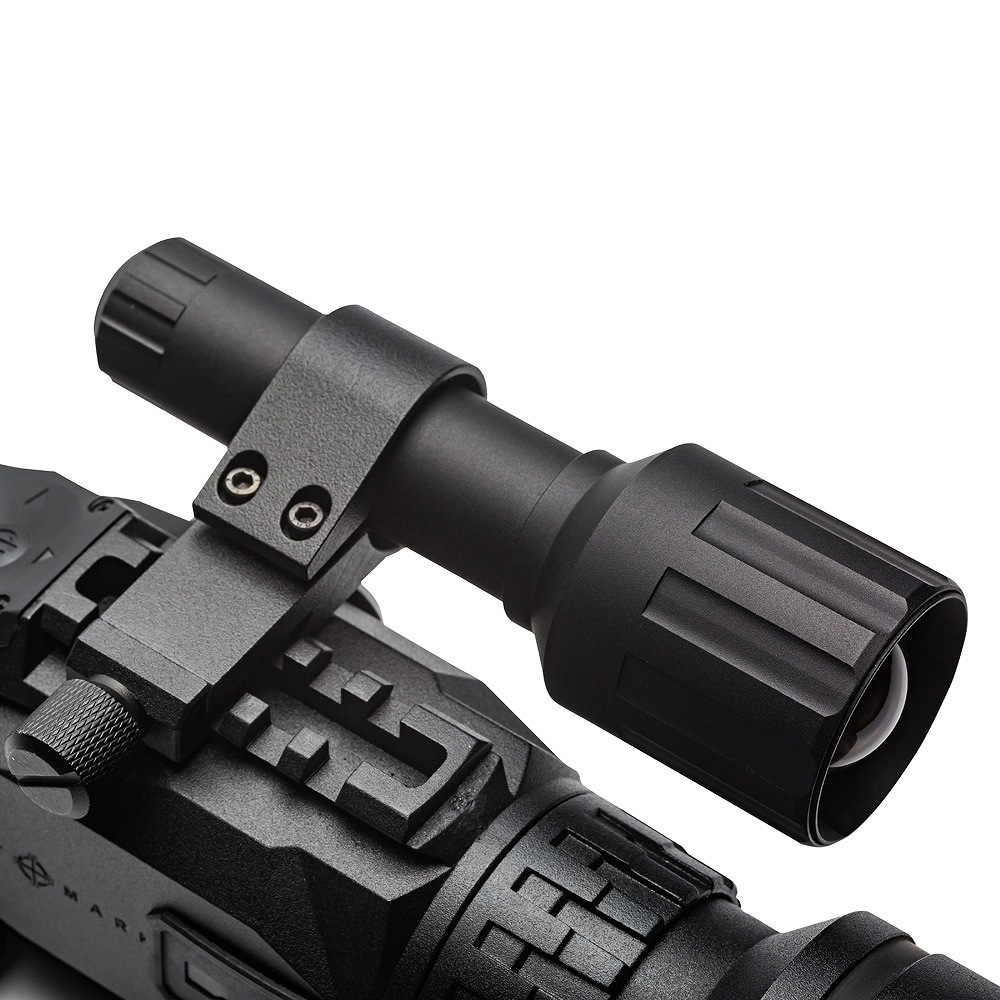

The Wraith comes with a removable 850nm IR illuminator to provide an enhanced nighttime image and accurate target acquisition up to 200 yards.
Customize your riflescope with 10 reticle options and 9 color choices to fit your needs.

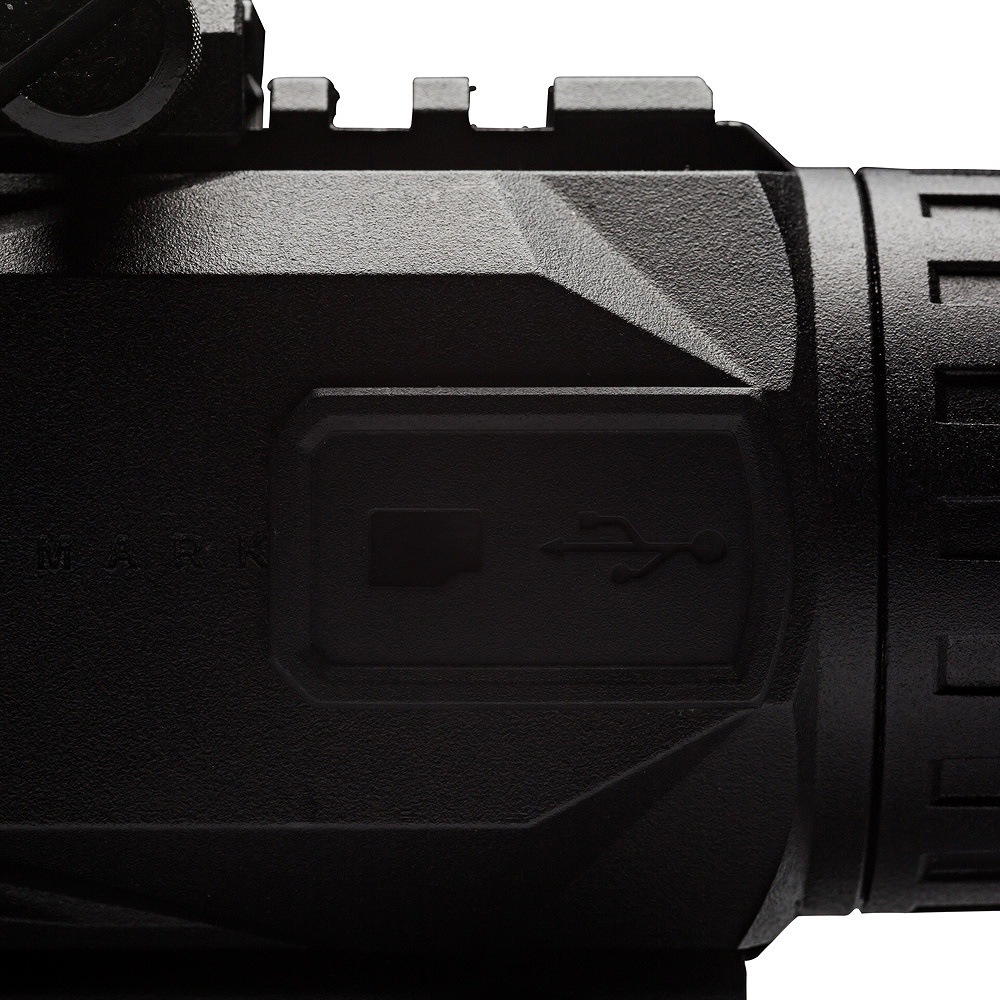

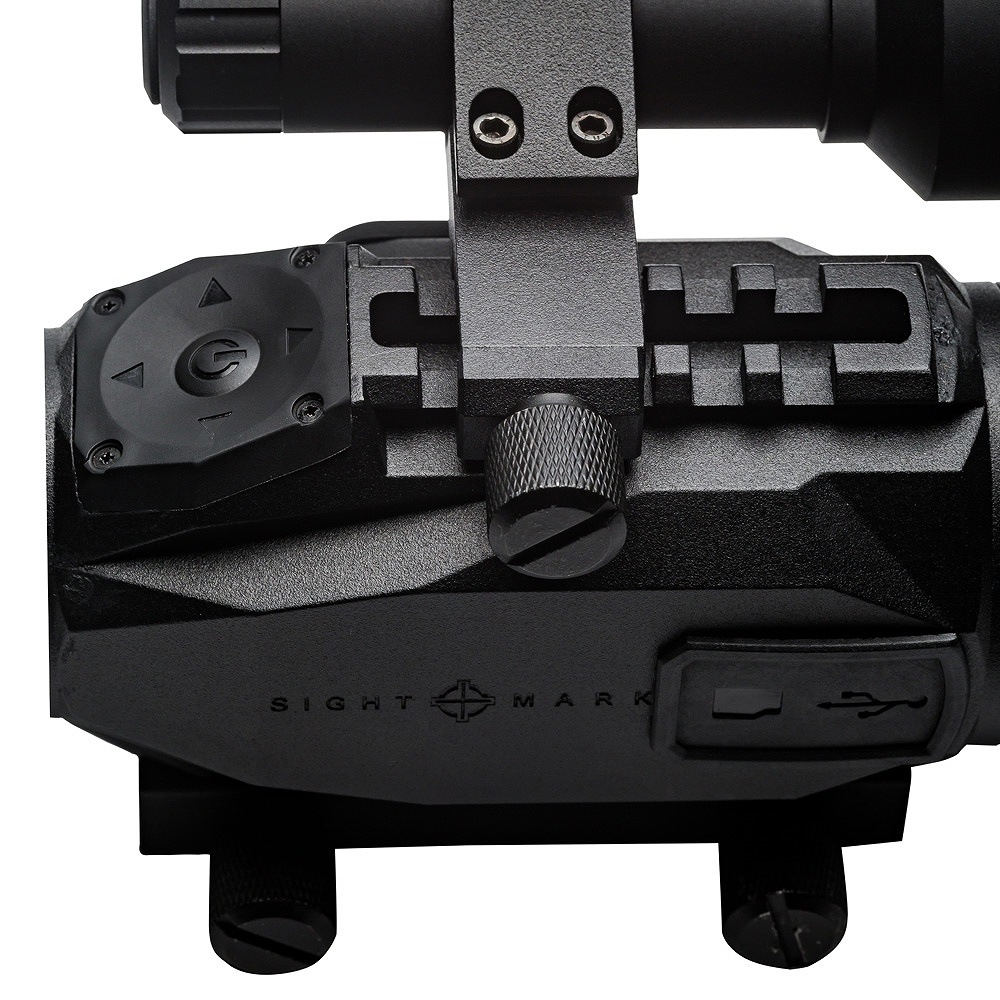

The Wraith features a built-in camera allowing users to record and share videos, 4.5-hours of battery life with 4 common AA batteries and an external MicroUSB port expands options for power.
Wraiths also allow video recording and export.
Features: Day/Night mode ? full color viewing for day use; black and white or classic green for night vision mode High-definition sensor ? high resolution imaging with video recording in 1080p HD 8x digital zoom ? a 4x optical system for up to 32x magnification Power ? 4 AA batteries for up to 4.5 hours of battery life and includes an external Micro USB power input HD photo or video recording (memory card not included).
Customizable tactical and hunting reticle options ? features 10 reticle options and 9 different color options for easier aiming and better accuracy ECCN: 0A987.a The ECCN, USML Category, or European Dual Use/Military designation, provided by Sellmark, is advisory.
All advisory information reflects an interpretation of the U.S./European export laws and regulations, and is subject to change without notice.
It is the obligation of the exporter requesting the advisory information from Sellmark to comply with all applicable export control laws and regulations.
Sellmark makes no representation as to the accuracy or reliability of the export control classification information, and is in no way responsible for any damages or penalties suffered by any other party as a result of using or relying upon such information.
Please refer to the Export Compliance page for more information.
See the future in high definition with the new Sightmark Wraith 4-32x50mm Digital Riflescope.
Hunt with an advanced 1920x1080 HD sensor, providing full-color clarity in daytime; simply hit the left arrow to switch to night mode ? with classic emerald or black and white viewing options.
The Wraith comes with a removable 850nm IR illuminator to provide an enhanced nighttime image and accurate target acquisition up to 200 yards.
Customize your riflescope with 10 reticle options and 9 color choices to fit your needs.
The Wraith features a built-in camera allowing users to record and share videos, 4.5-hours of battery life with 4 common AA batteries and an external MicroUSB port expands options for power.
Wraiths also allow video recording and export.
Features: Day/Night mode ? full color viewing for day use; black and white or classic green for night vision mode High-definition sensor ? high resolution imaging with video recording in 1080p HD 8x digital zoom ? a 4x optical system for up to 32x magnification Power ? 4 AA batteries for up to 4.5 hours of battery life and includes an external Micro USB power input HD photo or video recording (memory card not included).
Customizable tactical and hunting reticle options ? features 10 reticle options and 9 different color options for easier aiming and better accuracy
スペック
Type of Sensor | CMOS sensor |
Sensor ソリューション, pixels | 1920x1080 |
Display Type | FLCOS |
Display ソリューション, pix. | 1280x720 |
Built-in Video Recorder Availability | Yes |
Maximum memory card supported, Gb | 64 |
Format of video clip | AVI |
ソリューション of video clip | 1080/720 |
Format of photo files | JPEG |
ソリューション of photo files | 1080/720 |
Memory capacity | Approximately 7 時間 video with 64Gb SD card |
倍率 | 4 - 32 x |
Diameter, Lens, mm | 50 |
Digital Zoom | 1-8x |
Lens Focus, mm | 80 |
Relative aperture, D/f' | 2.5 |
視野(FoV), m@100m | 7 |
視野(FoV), ft@100yd | 21 |
Minimum focusing distance, ft/m | 12/3.6 |
アイリリーフ | 2.4 / 60 in / mm |
視度調整範囲 | -6 to +3 |
Emitter | LED |
Equivalent IR Power, mW | ~1060 on high, ~540 on medium, ~400 on low |
Night Vision Detection Range | 200 / 183 yd / m |
Power Supply | 6 v |
バッテリー寿命, 時間 | 3.5 video mode / 4.5 preview mode |
External Power Supply | 5V via microUSB |
Number of Preloaded Reticles | 10 |
Colors | Black, white, red, blue, green, cyan, orange, yellow, magenta |
ボディ素材 | アルミニウム |

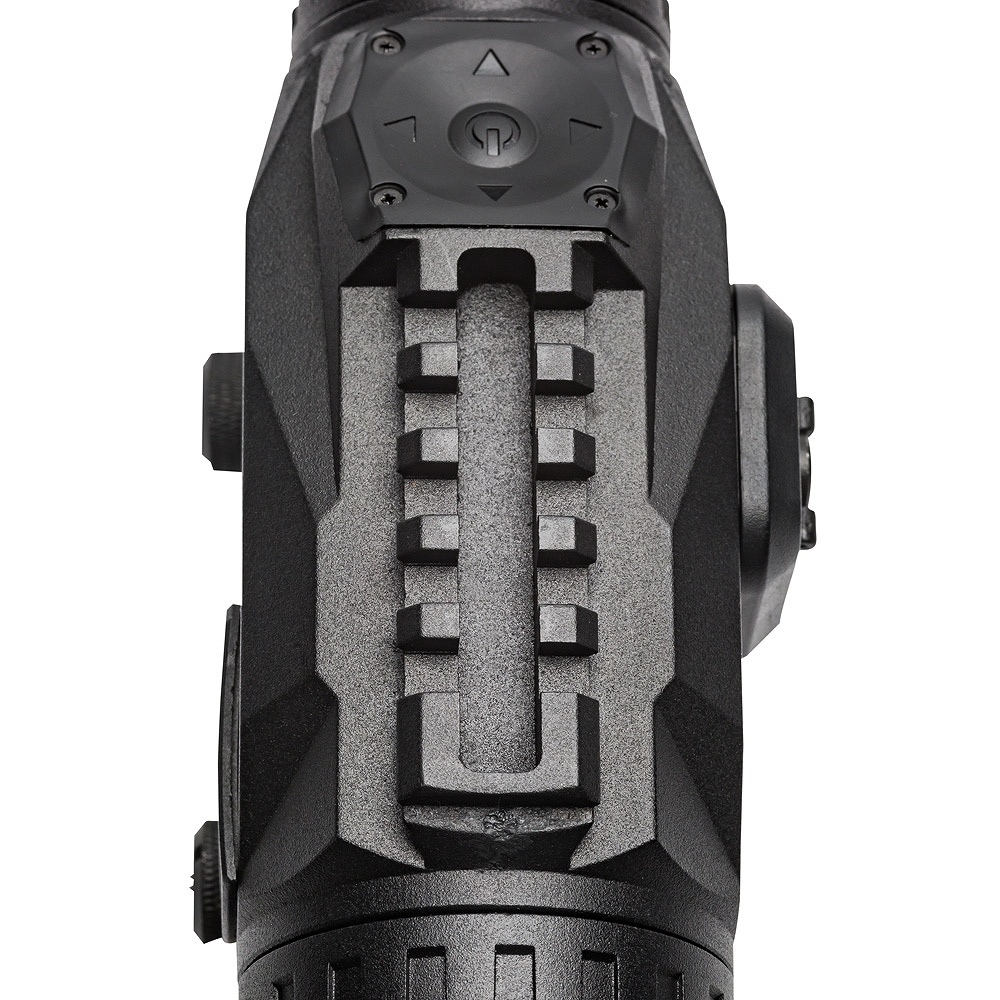

Accessory rail mount | ピカティニー |
Operating Temperature | 5 to 122 / - 15 to + 50 F / C |
Waterproof Rating | IP55 water resistant |
ニトロゲン封入 | No |
耐衝撃性 | Yes, 3ft |
最大リコイル | .308 |
Tube size, in/mm | N/A |
長さ | 10.5 / 266 in / mm |
幅 | 1.875 / 63 in / mm |
高さ | 3 / 75 in / mm |
重さ, oz | 36.3 (with batteries) |
エレベーション調整幅 | 70 MOA |
ウィンテージ調整幅 | 170 MOA |
Windage & Elevation click value | 1/5 MOA |
バッテリータイプ | 4xAA |
バッテリー寿命 (with IR) | 2 時間 on high (2x CR123A バッテリータイプ for IR) |
視野(FoV) | 4 (horizontal) degrees |
IR Wave長さ | 850nm |
レティクル

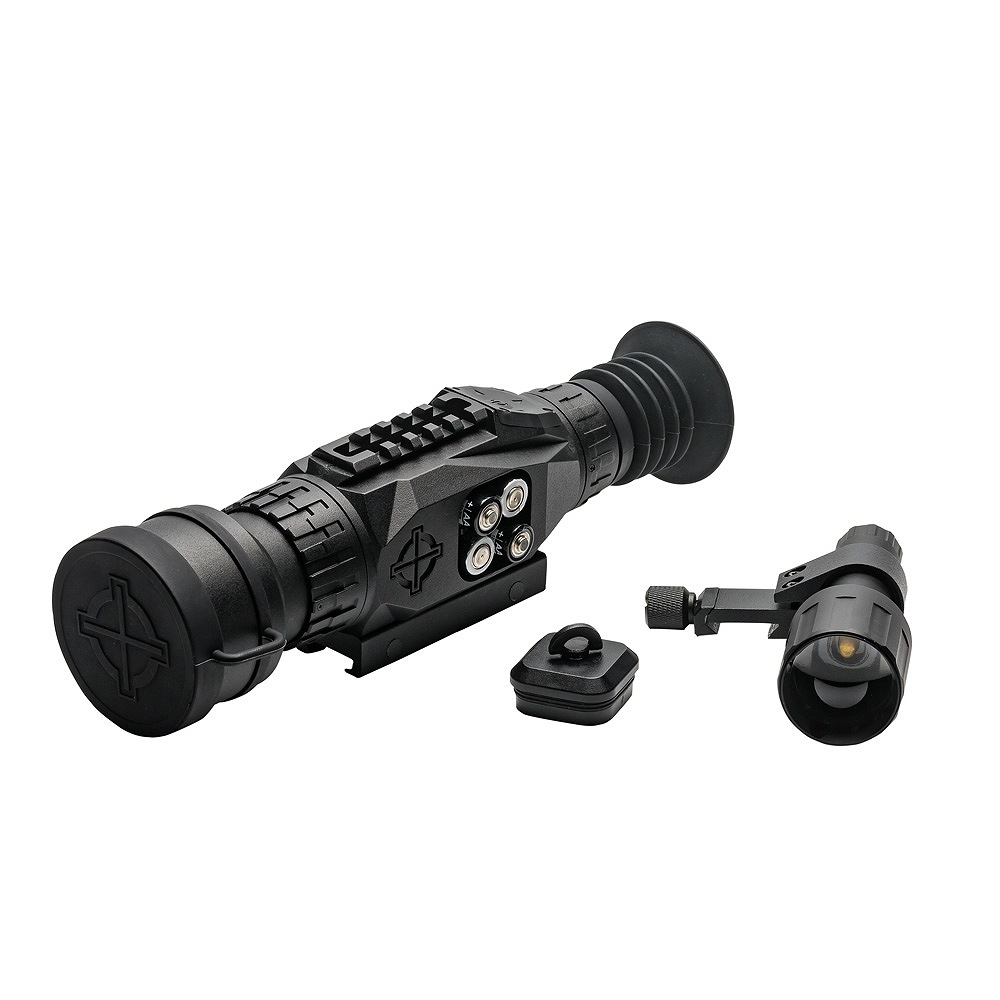

パッケージ内容
- IR flashlight
- Objective レンズカバー
- Fixed ピカティニーマウント
- User マニュアル
