概要

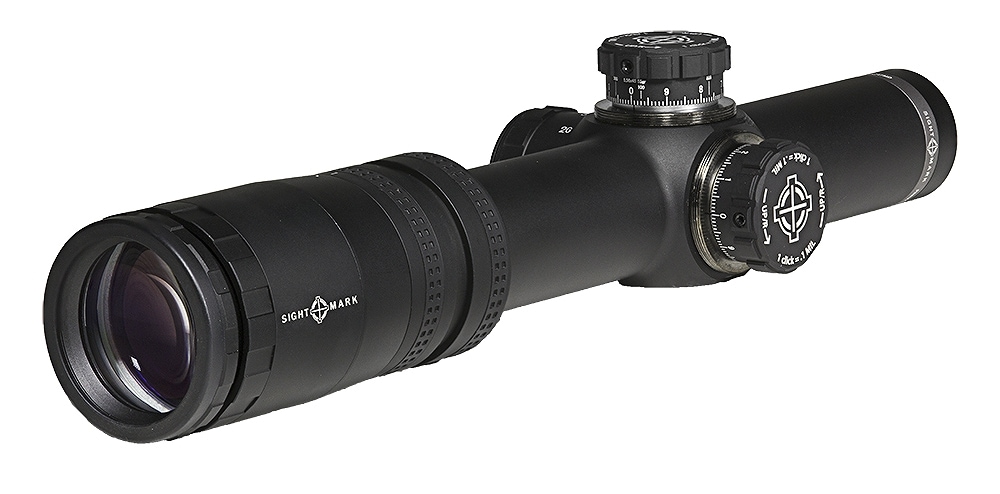

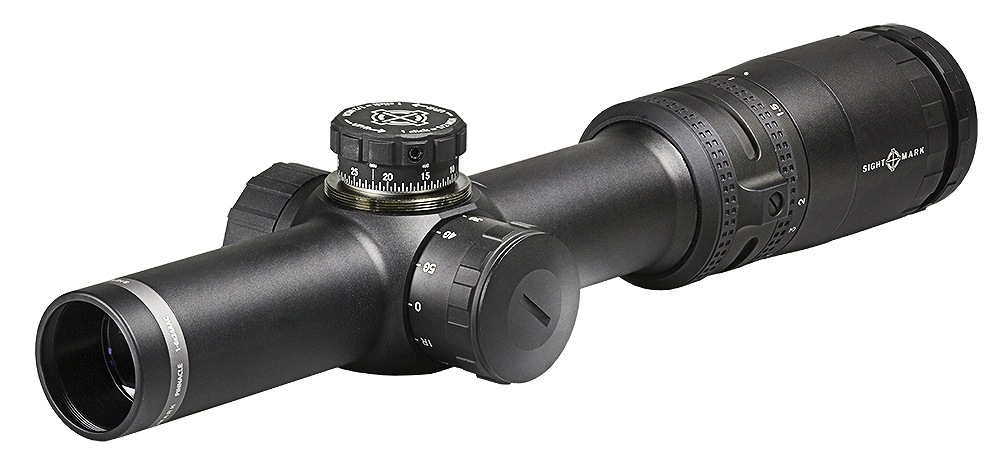

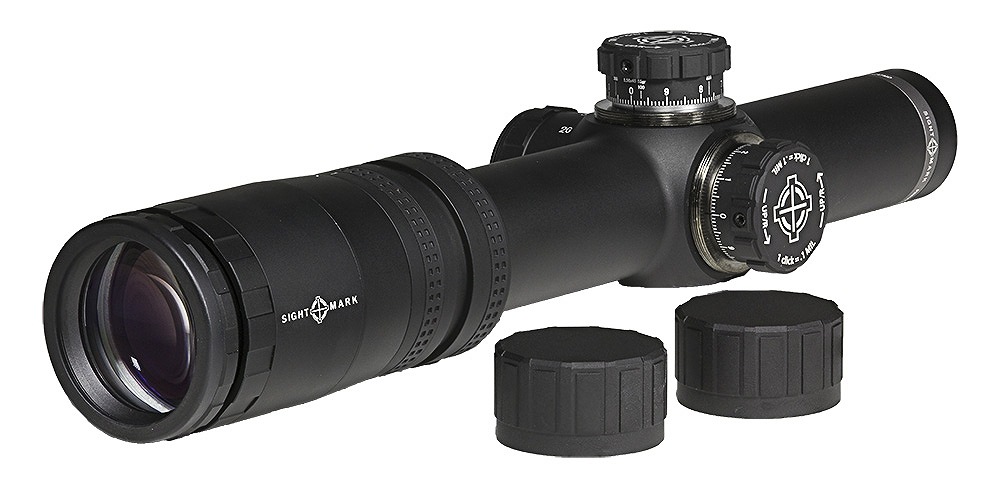

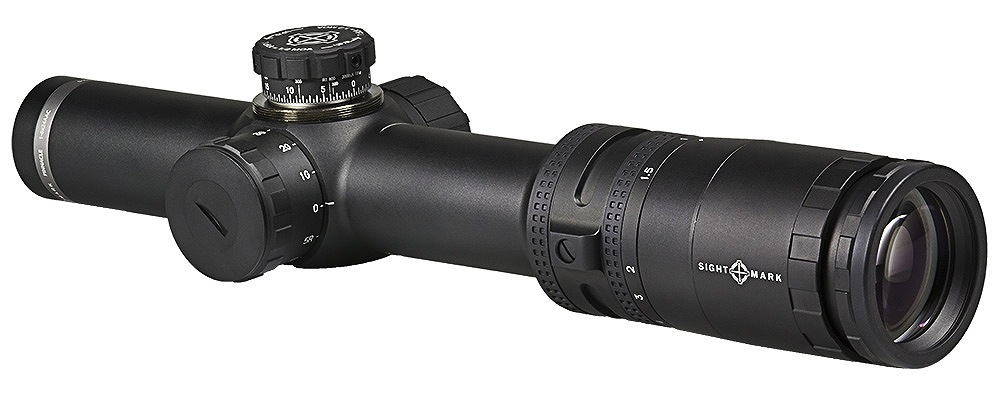

Precision-machined with high definition optics and premium Japanese glass, the Sightmark速 Pinnacle 1-6x24ACC offers crystal clear resolution from edge to edge, free from distortions at any magnification.
The riflescope yields a first-focal plane ballistically-matched CDC-300 reticle for subsonic and supersonic 300 Blackout.
Its red/green illuminated reticle accomplishes holdovers from 100-800 yards, allowing shooters to utilize this versatile round more effectively at all distances.
The red/green illuminated reticle remains in the same visual proportion to the target across the riflescopes entire magnification range, allowing shooters to rangefind and shoot with holdovers effectively.
Its true 1x provides both-eyes-open usage for increased situational awareness at close range, while the 6x optical system hones in on far-away targets with ease.

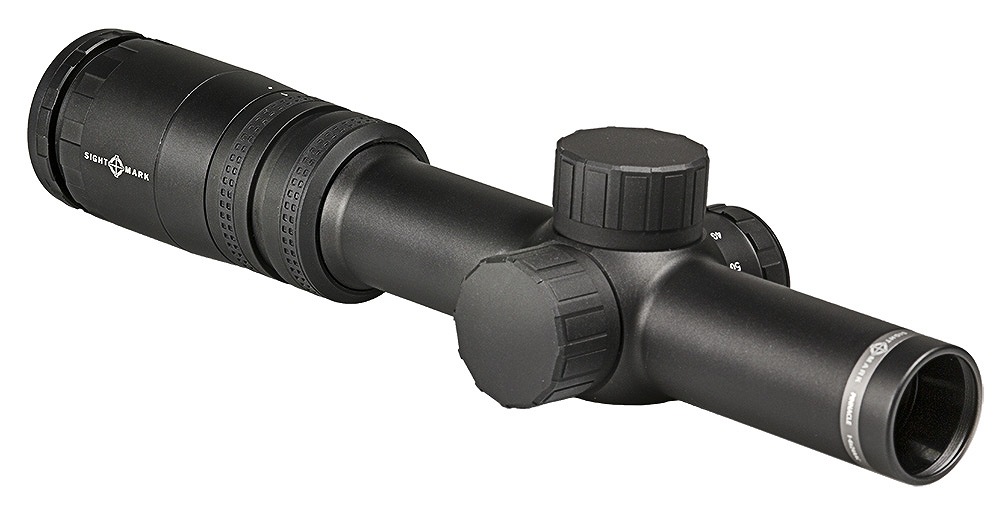

Shooters have the luxury of a capped or exposed turret option as well as scratch-resistant lenses, helping to further protect the optic from impact.
ECCN: 0A987.a The ECCN, USML Category, or European Dual Use/Military designation, provided by Sellmark, is advisory.
All advisory information reflects an interpretation of the U.S./European export laws and regulations, and is subject to change without notice.
It is the obligation of the exporter requesting the advisory information from Sellmark to comply with all applicable export control laws and regulations.
Sellmark makes no representation as to the accuracy or reliability of the export control classification information, and is in no way responsible for any damages or penalties suffered by any other party as a result of using or relying upon such information.
Please refer to the Export Compliance page for more information.
Precision-machined with high definition optics and premium Japanese glass, the Sightmark速 Pinnacle 1-6x24ACC offers crystal clear resolution from edge to edge, free from distortions at any magnification.
The riflescope yields a first-focal plane ballistically-matched CDC-300 reticle for subsonic and supersonic 300 Blackout.
Its red/green illuminated reticle accomplishes holdovers from 100-800 yards, allowing shooters to utilize this versatile round more effectively at all distances.
The red/green illuminated reticle remains in the same visual proportion to the target across the riflescopes entire magnification range, allowing shooters to rangefind and shoot with holdovers effectively.
Its true 1x provides both-eyes-open usage for increased situational awareness at close range, while the 6x optical system hones in on far-away targets with ease.
Shooters have the luxury of a capped or exposed turret option as well as scratch-resistant lenses, helping to further protect the optic from impact.
スペック
| レティクルタイプ | CDC-300 |
| レティクルカラー | Red/Green |
| レティクルイルミネーション | Yes |
| 光量設定 | 1 - 5 |
| 仕上げ / カラー | マットブラック |
| 倍率 | 1 - 6 x |
| 対物レンズサイズ | 24 mm |
| Diameter, Eyepiece | 33 mm |
| 射出瞳 | 24 - 4 mm |
| アイリリーフ | 103 mm |
| 視野(FoV) | 29.7 - 5.2 m @ 100m |
| 視野(FoV) | 90 - 15.9 ft @ 100yd |
| 視野(FoV) | 10 - 3.04 degrees |
| 視度調整範囲 | 3.5 to -3.5 |
| Diameter, Tube | 30 mm |
| パララックス | 100 yds |
| ウィンテージ調整幅 | 140 MOA |
| エレベーション調整幅 | 140 MOA |
| 調整単位 | 1/2 MOA |
| 最大リコイル | 800 g's |
| バッテリータイプ | CR2032 |
| バッテリー寿命 | 3 時間 |
| バッテリー電圧 | 3 V |
| ニトロゲン封入 | yes |
| 耐衝撃性 | yes |
| 防霧性 | yes |
| 焦点面 (SFP / FFP) | first |
| 防水規格 | IP67 (submergible to 1m) |
| ボディ素材 | アルミニウム - 6061 |
| レンズ素材 | glass |
| レンズコーティング | fully multicoated AR green |
| 動作温度 (華氏 / 摂氏) | -20 to 160 / -29 to 71 F/C |
| 長さ | 10.2 / 260 in/mm |
| 幅 | 2.89 / 73.5 in/mm |
| 高さ | 2.2 / 56 in/mm |
| 重さ | 20.4 oz |

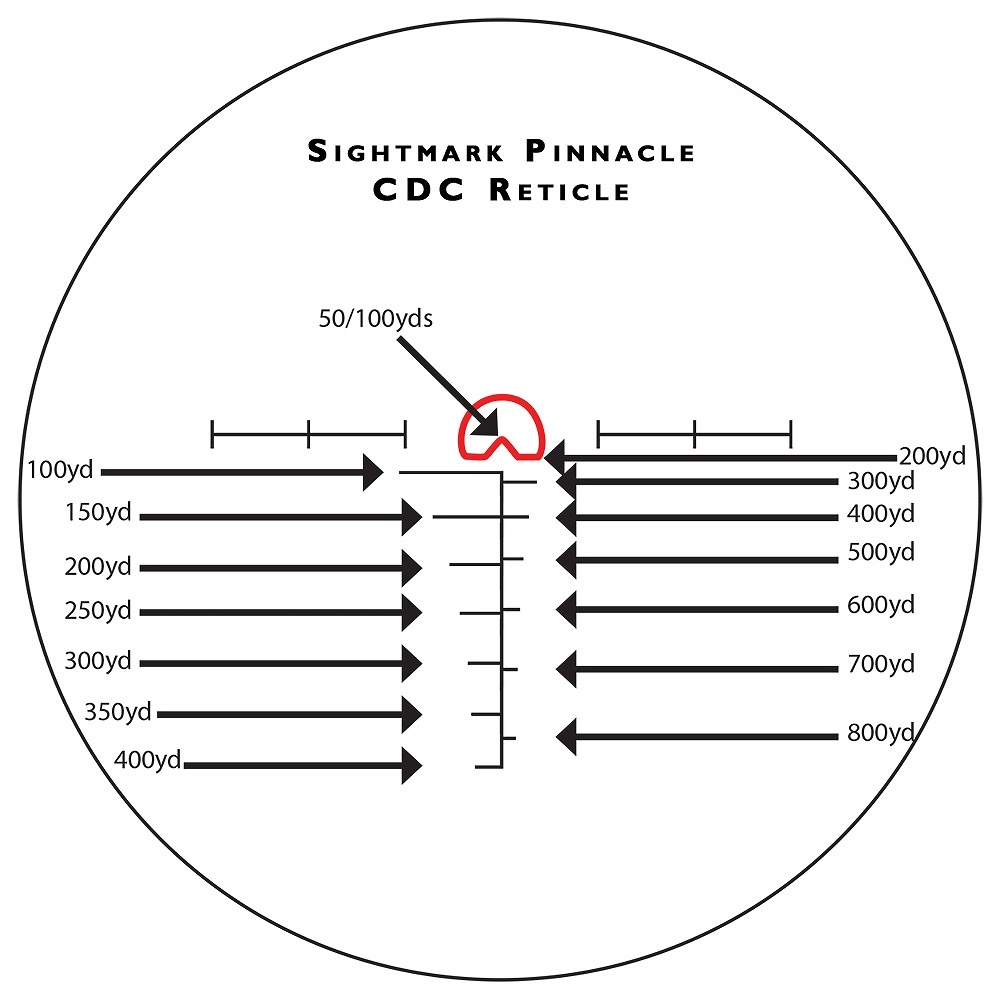

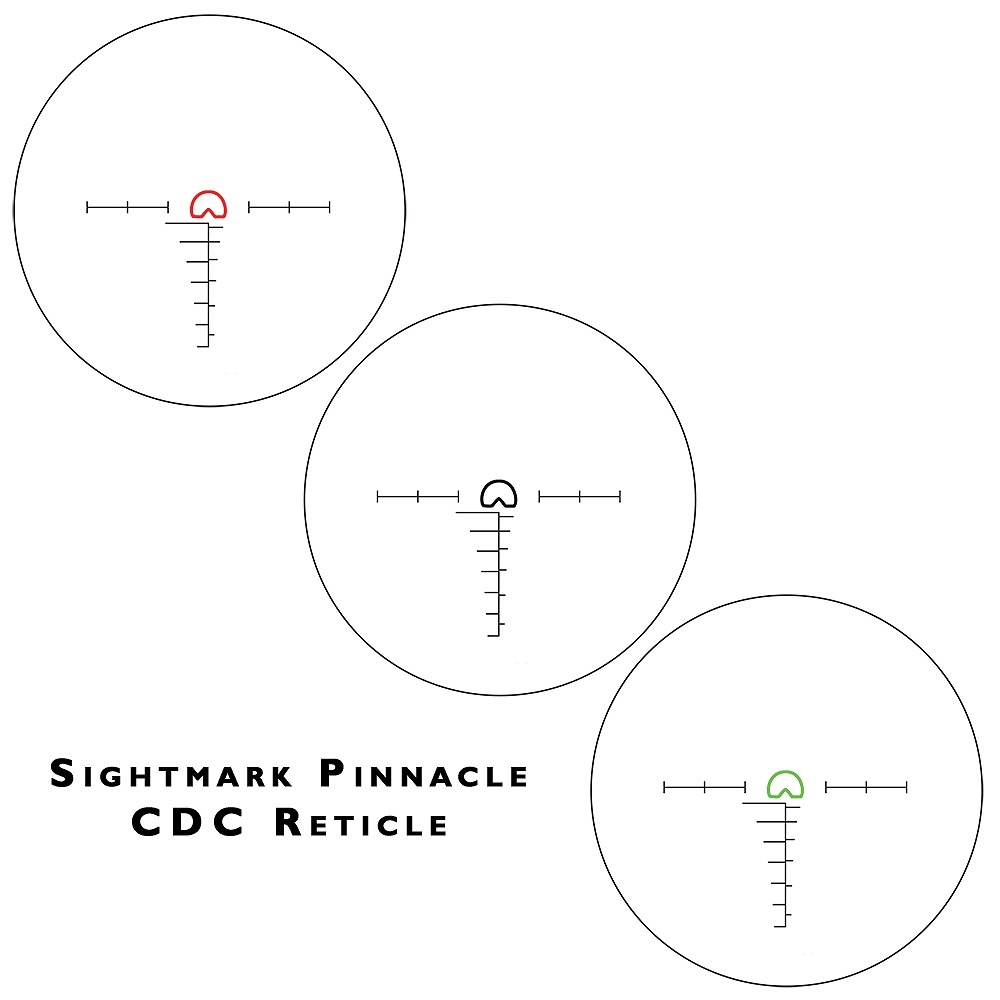

レティクル

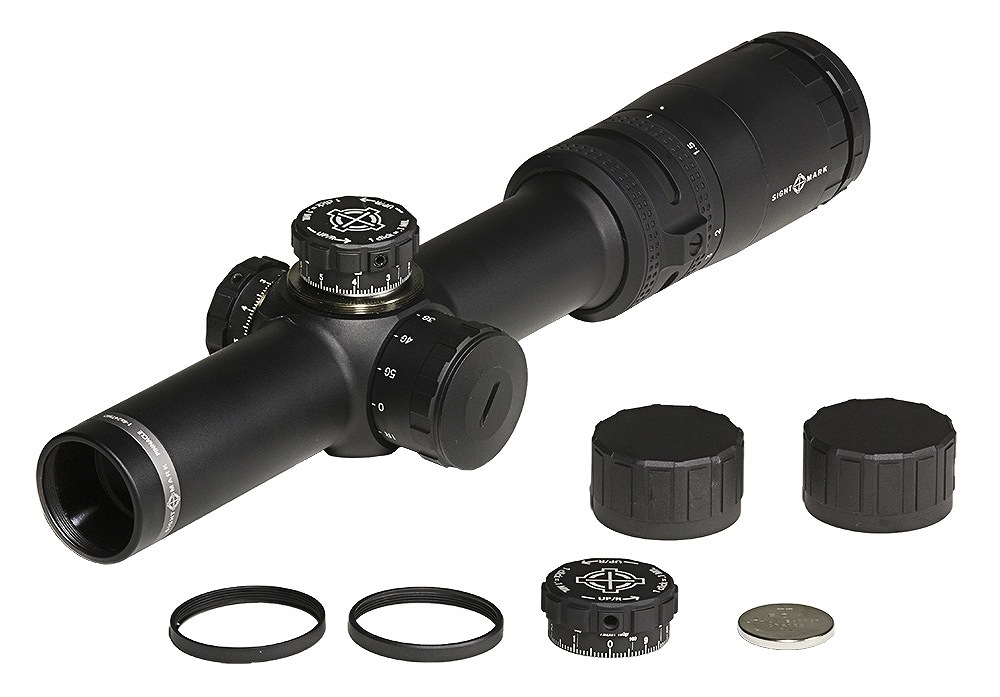

パッケージ内容
- 300 AAC Blackout (7.62x35) 125gr BDC dial
- 300 AAC Blackout (7.62x35) 220gr BDC dial
- ダイヤルキャップ (2)
- スレッドプロテクター (2)
- CR2032 バッテリー
- マニュアル
