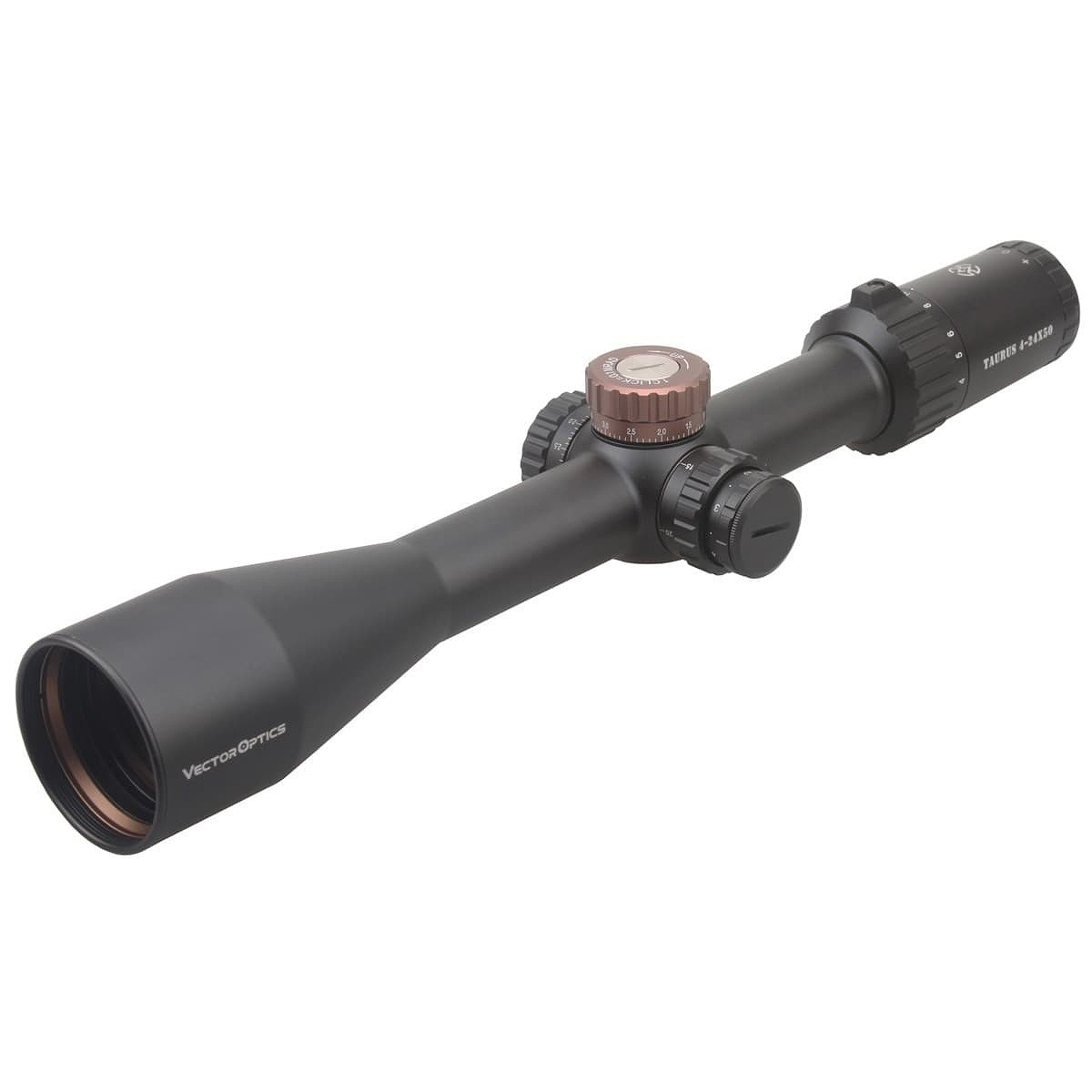

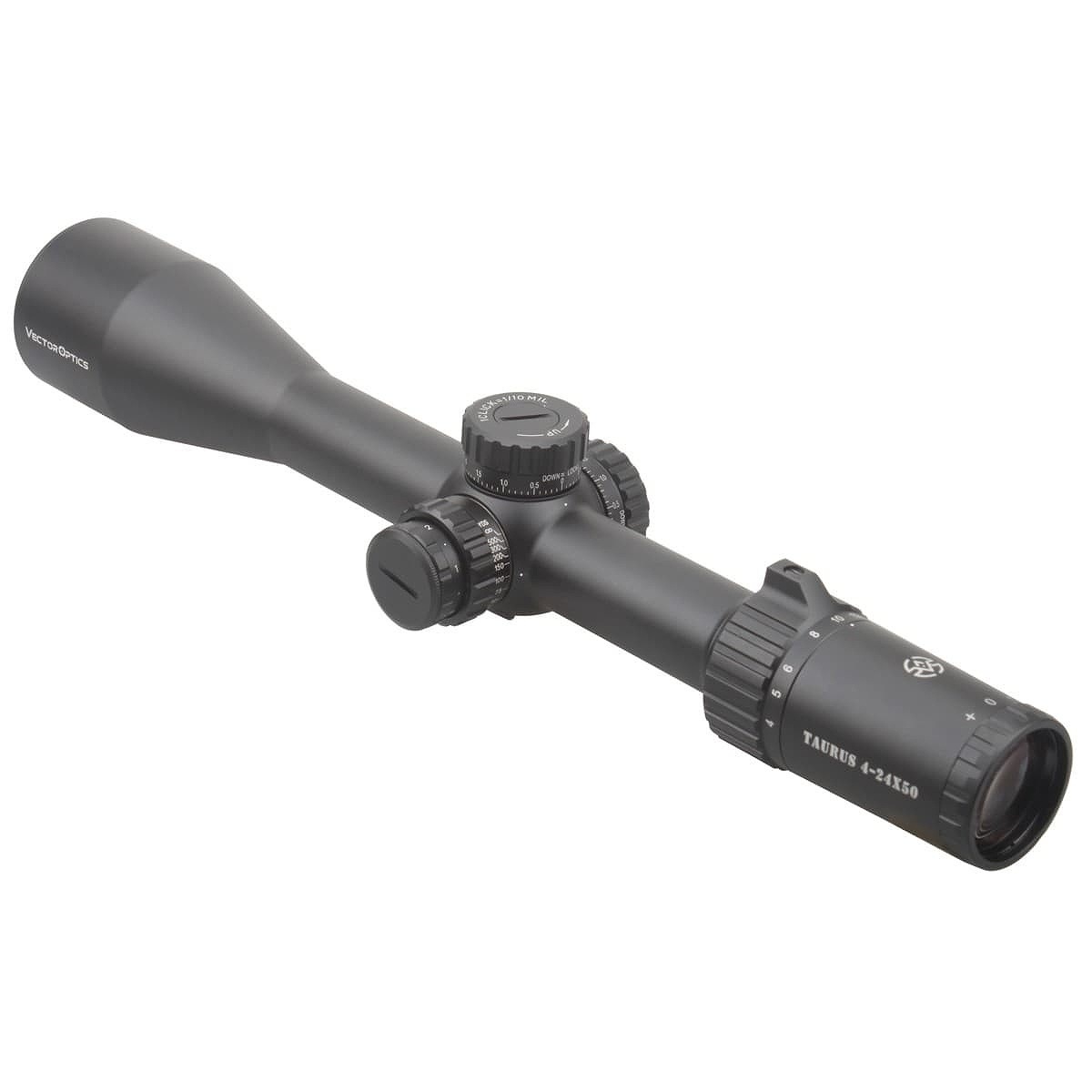

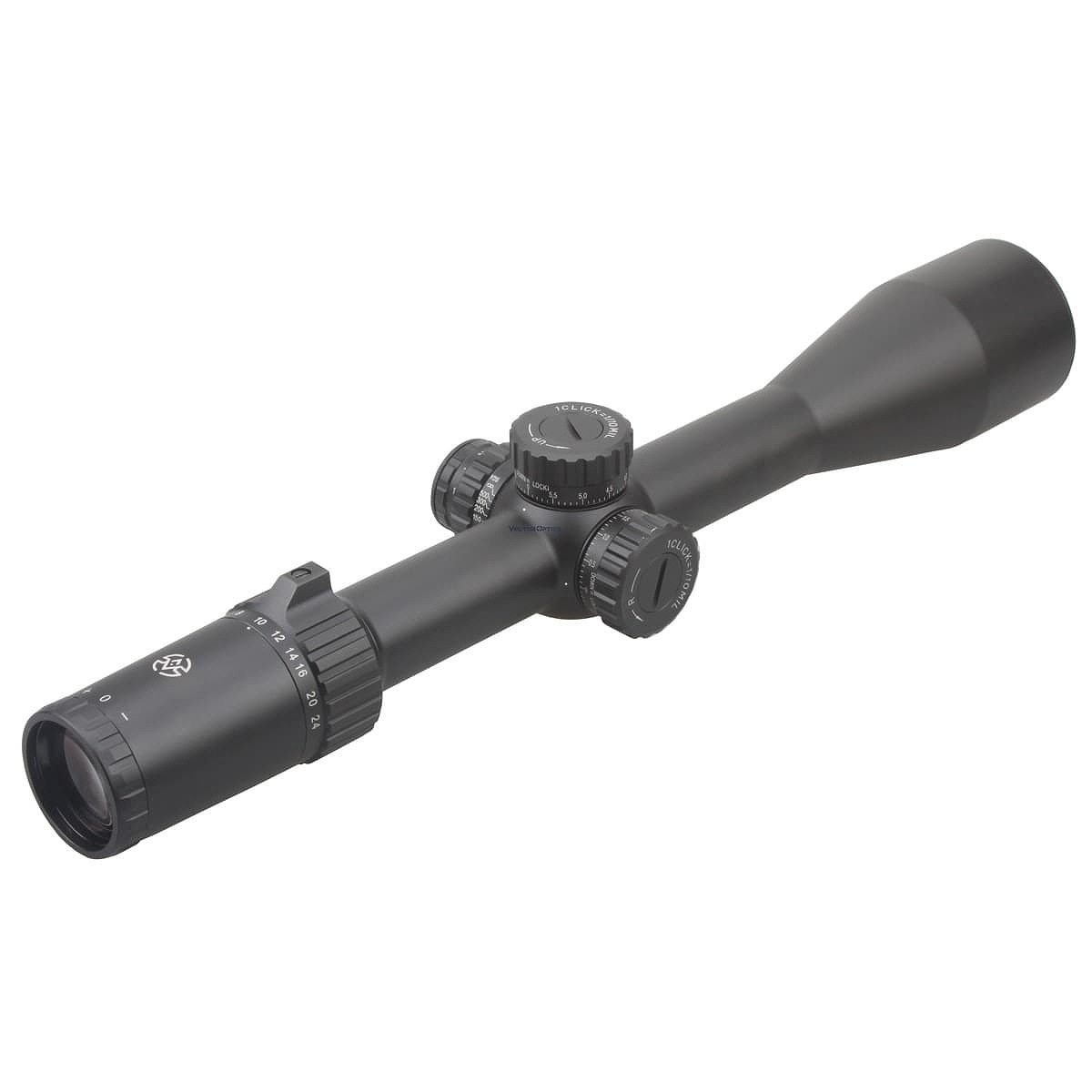

概要

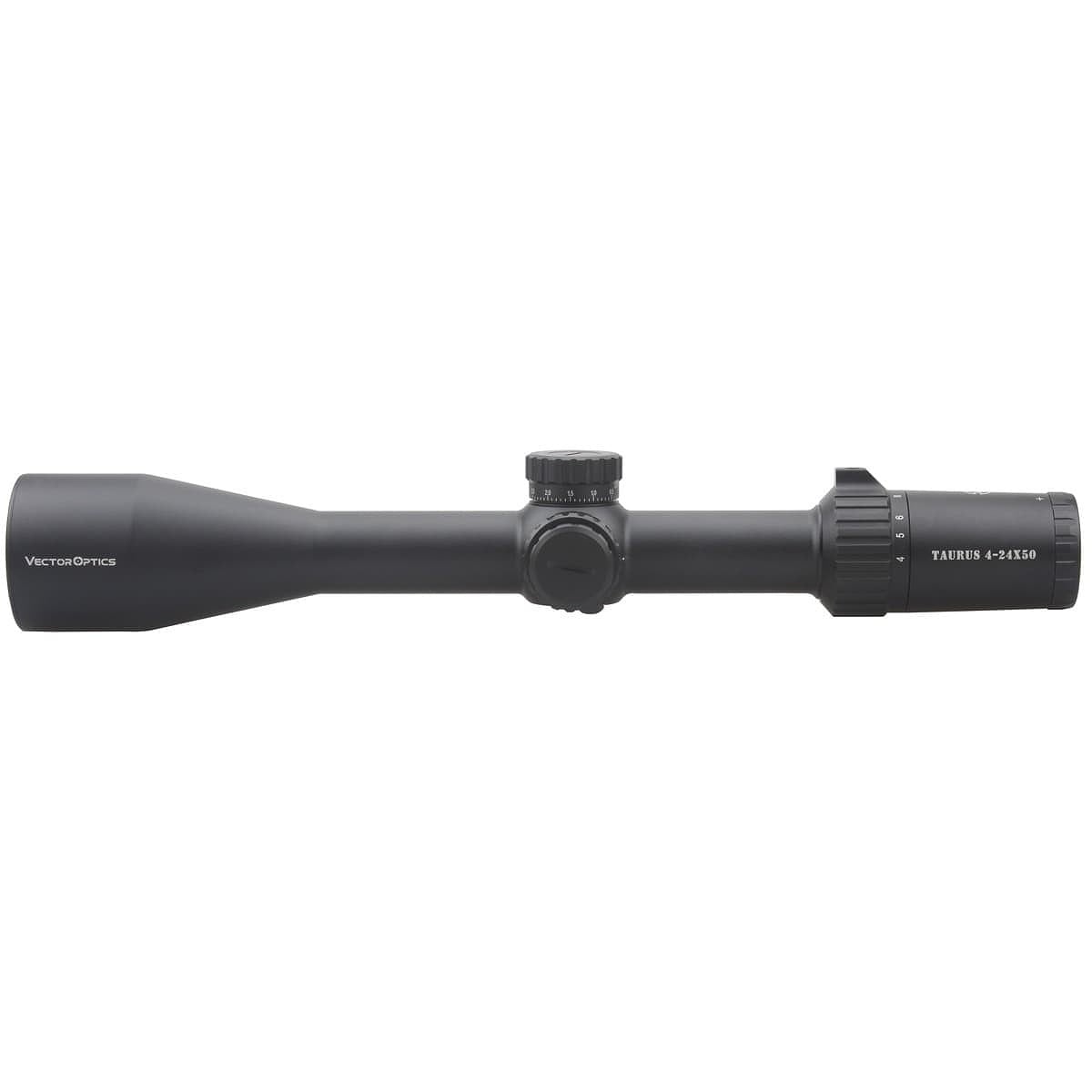

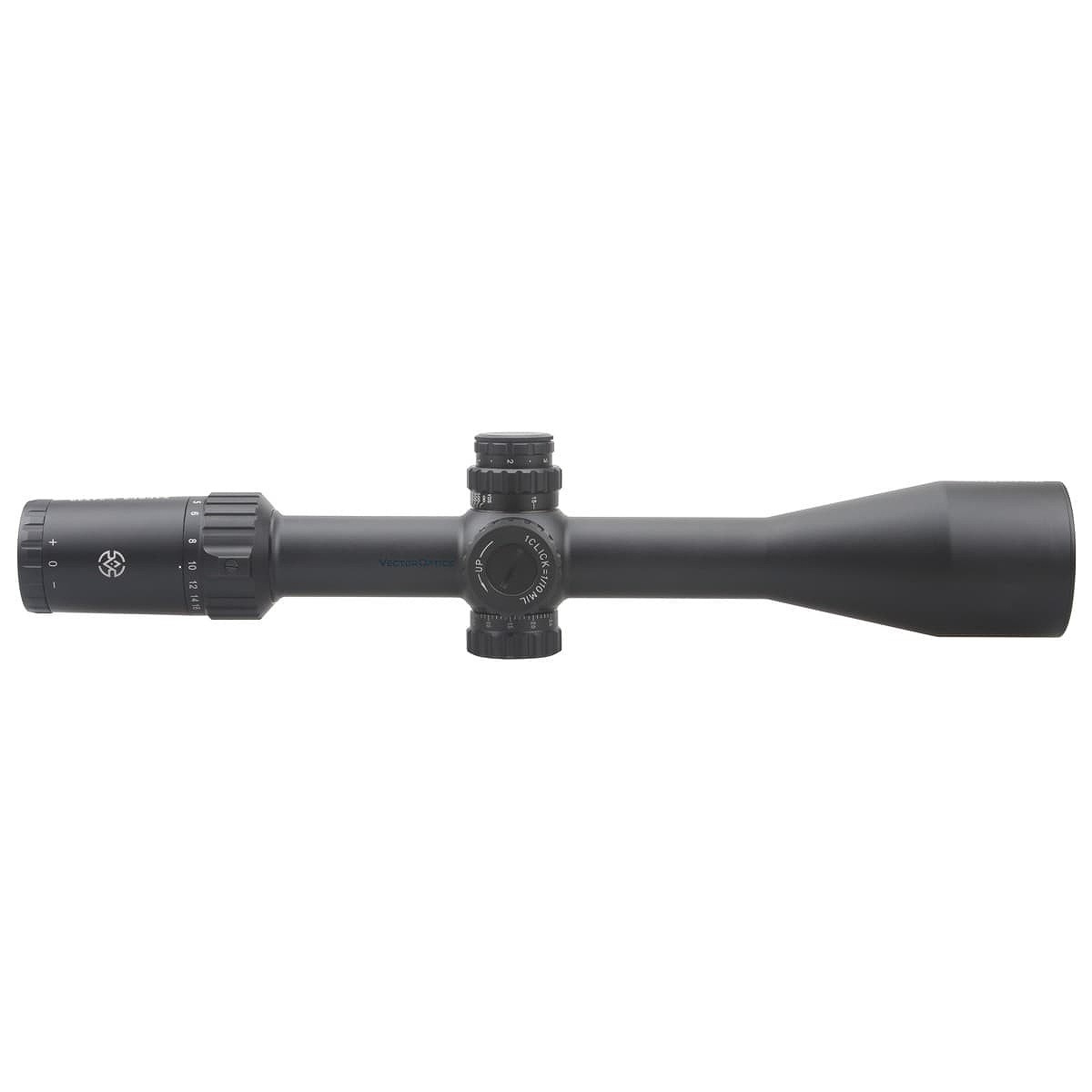

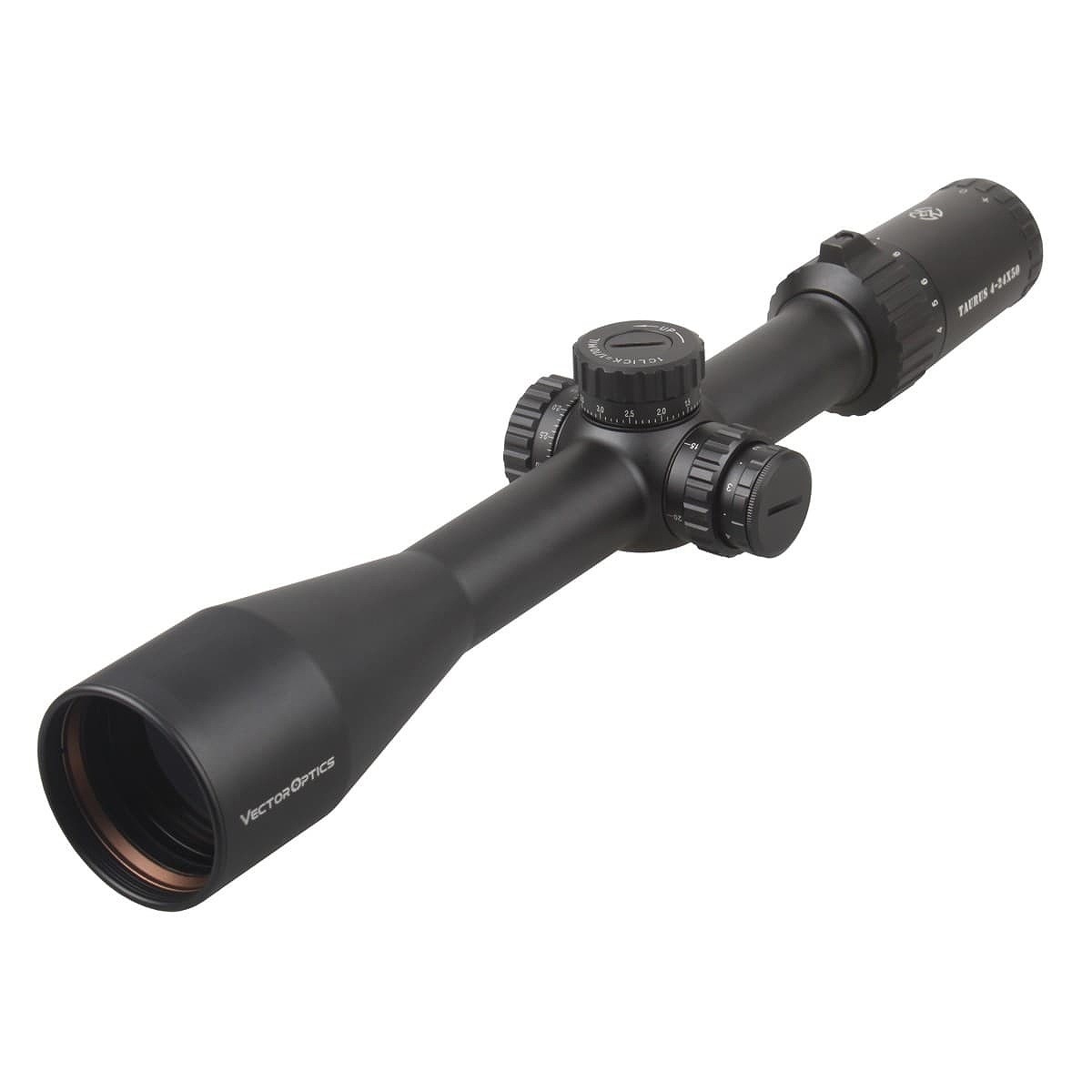

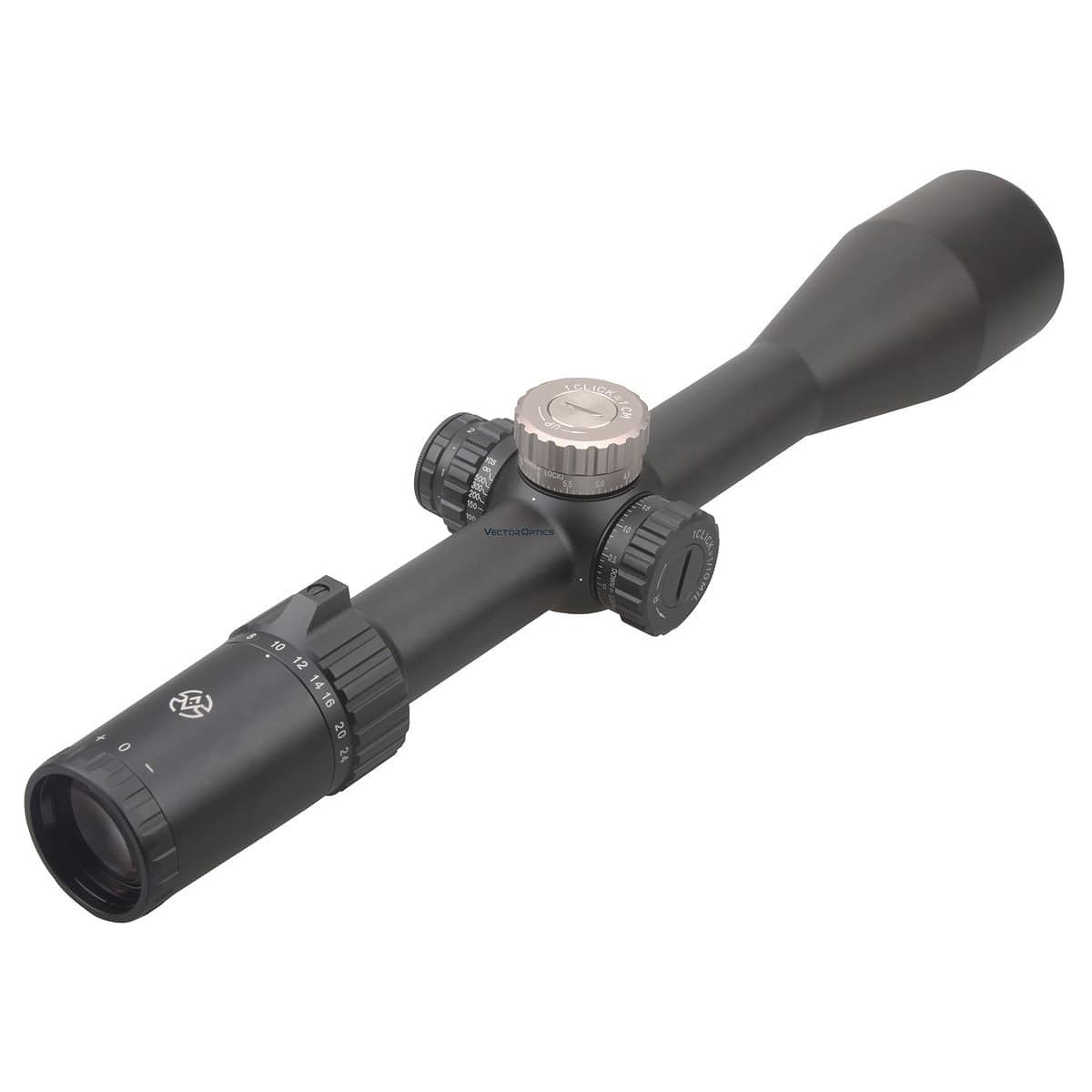

Diamond Clear Image, Long Eye Relief, First Focal Plane Etched MPX1 Reticle with German Tech
Turret Lock System, 1/10 MIL 1cm, 0.1 MRAD Adjust, 30mm Monotube, Side Illumination
Side Focus Min at 15 Yards, w/ Lens Cap, Honeycomb Sunshade, Tactical Scope Rings
スペック
- Magnification: 4-24x
- Objective Lens Dia: 50mm
- Ocular Lens Dia: 36mm
- Ocular Lens Length: 60mm
- Exit Pupil: 12.5-2.1mm
- Optics Coating: Diamond Fully-Multi
- Field of View: 9.1-1.5m@100 meters
- Eye Relief: 100mm / 4 inch
- Length: 380mm / 15.0 inch
- Weight: 770g / 27.2 oz
- Tube Dia.: 30mm harmmer-forged
- Click Value: 1/10 MIL, 1cm, 0.1 MRAD
- Elevation Range: ?15MIL (50MOA)
- Windage Range: ?15MIL (50MOA)
- Parallax Adjustment: 15 yds to infinite
- Reticle: Etched Glass MPX1
- Illumination: 6 levels red
- Battery Type: CR2032
- 30mm hammer-forged aluminum monotube design
- Side focus mark: 15, 20, 25, 30, 40, 50, 60, 75, 100, 150, 200, 300, 500 and infinite
- Shock tested to 1000g, water proof and fully nitrogen purged

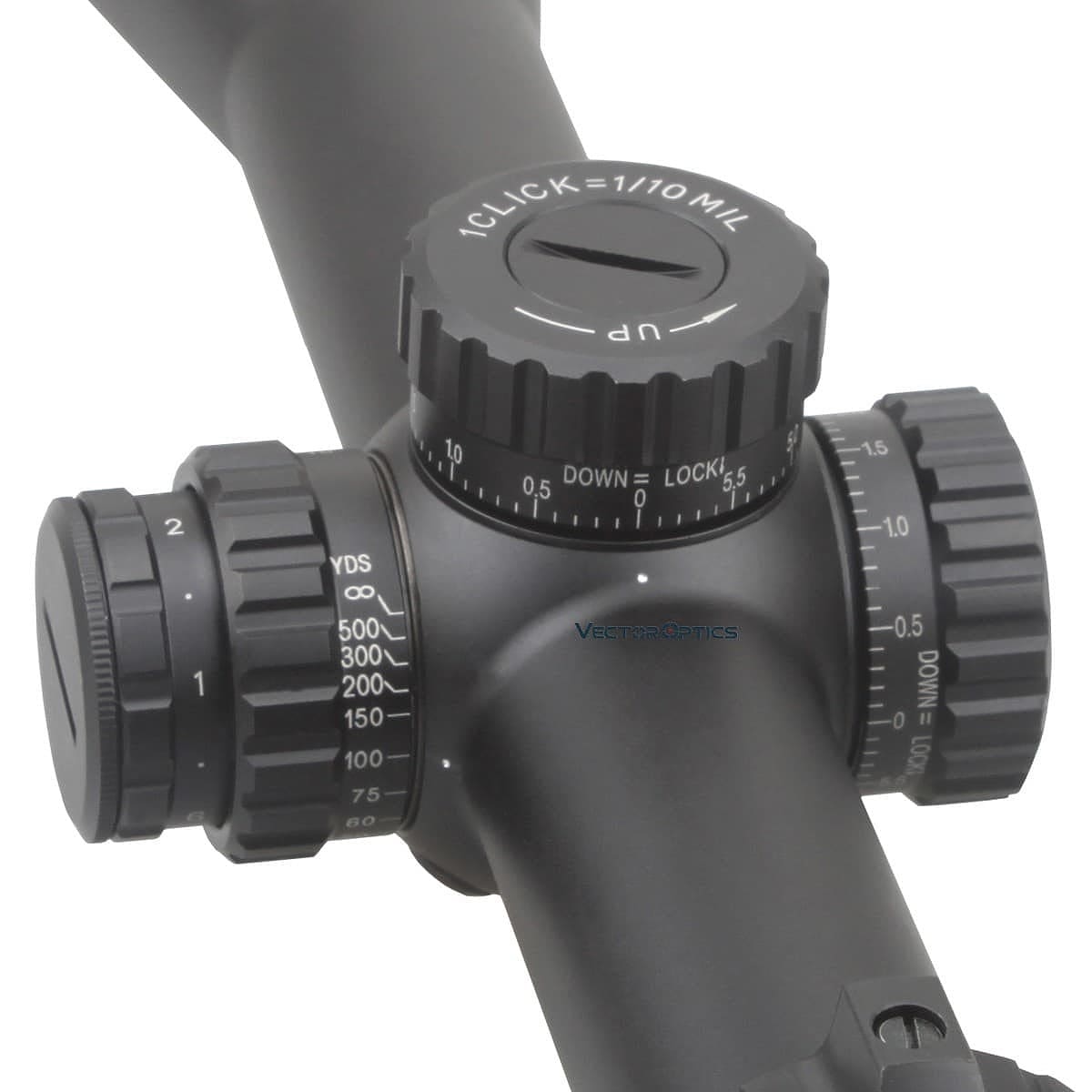

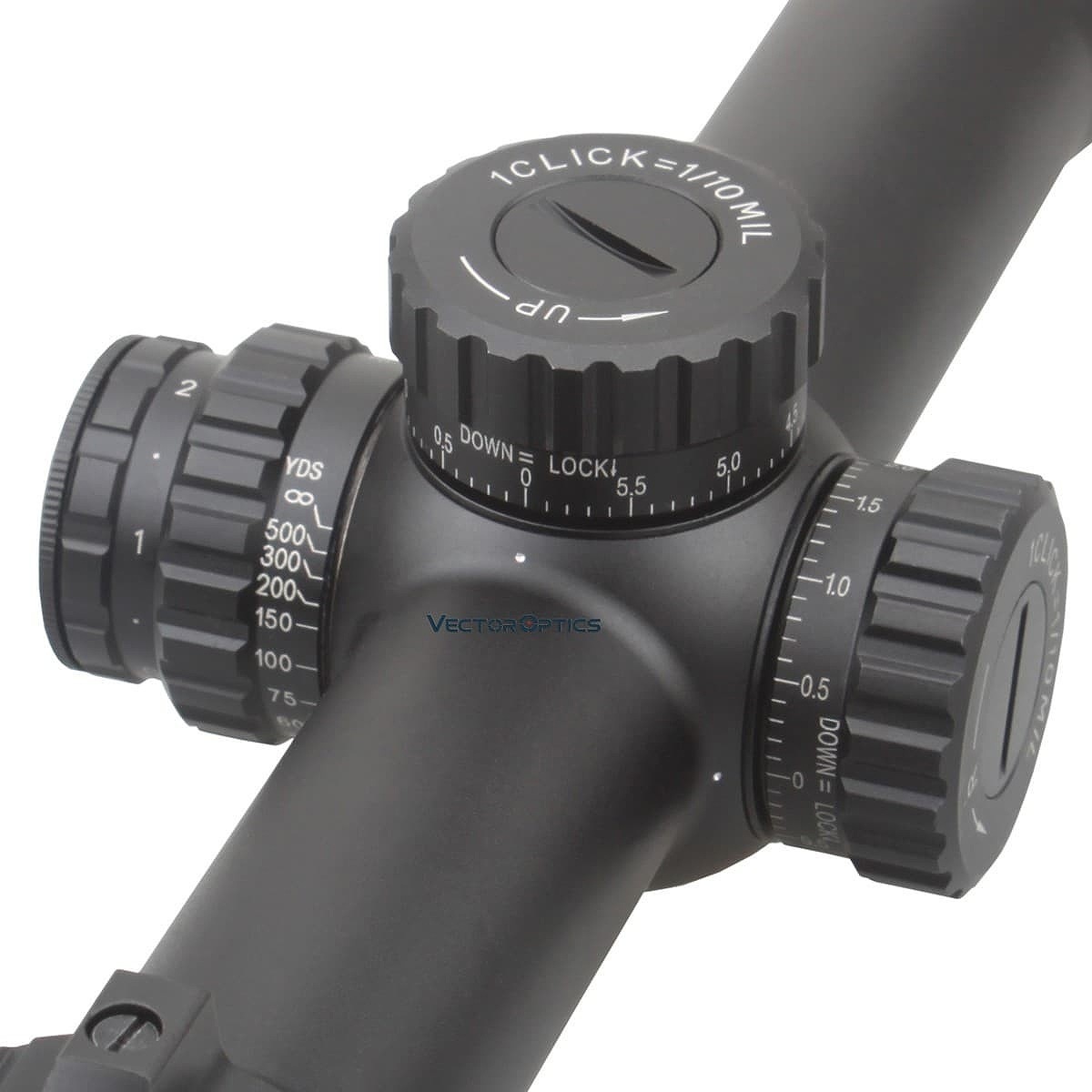

- Turret lock system. Pull to adjust, press to lock. Two extra elevation turrets marked 1cm and 0.1 MRAD
- High quality 6061 T6 aircraft grade aluminum
- Diopter compensation from fast-focus eyepiece -2 to +1.5

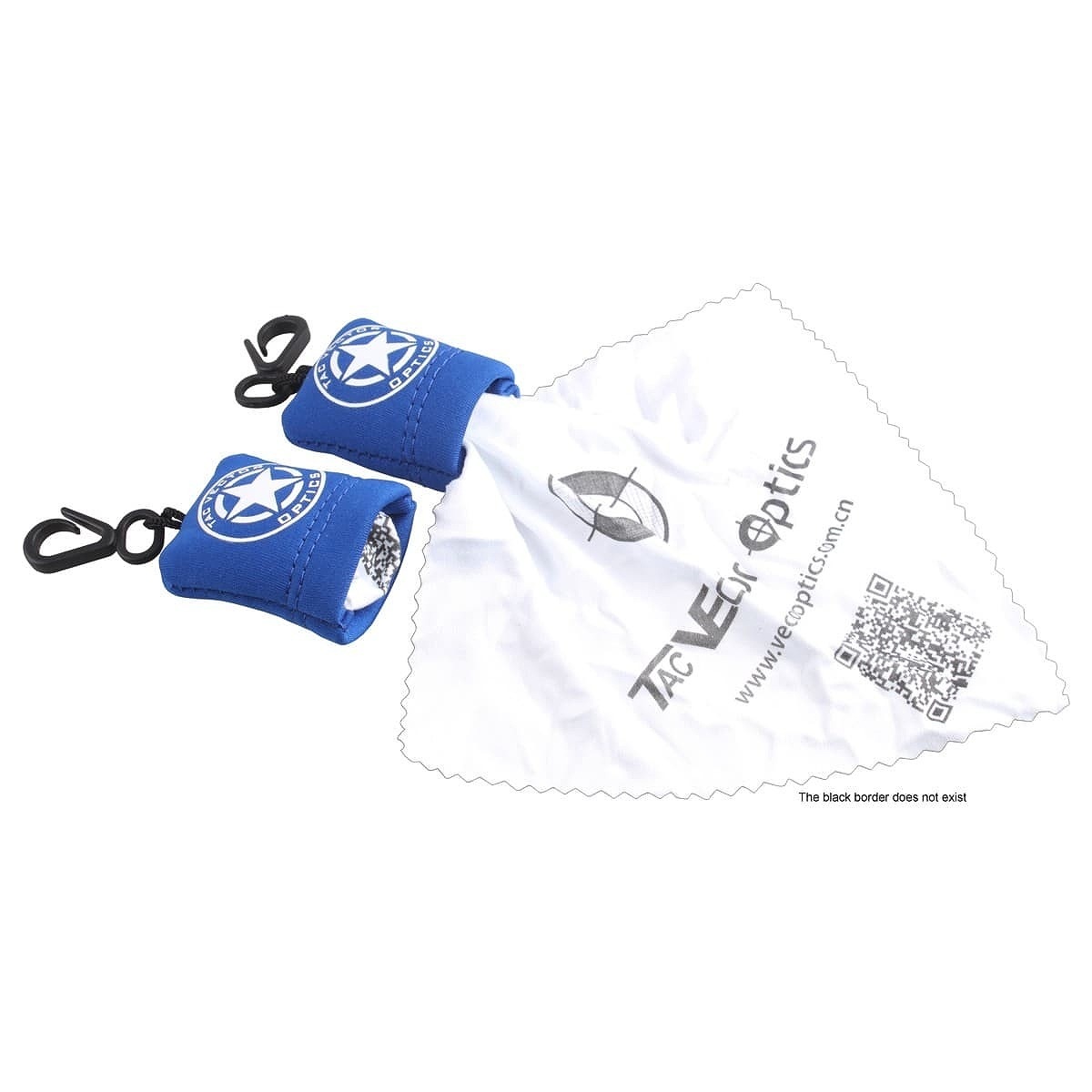

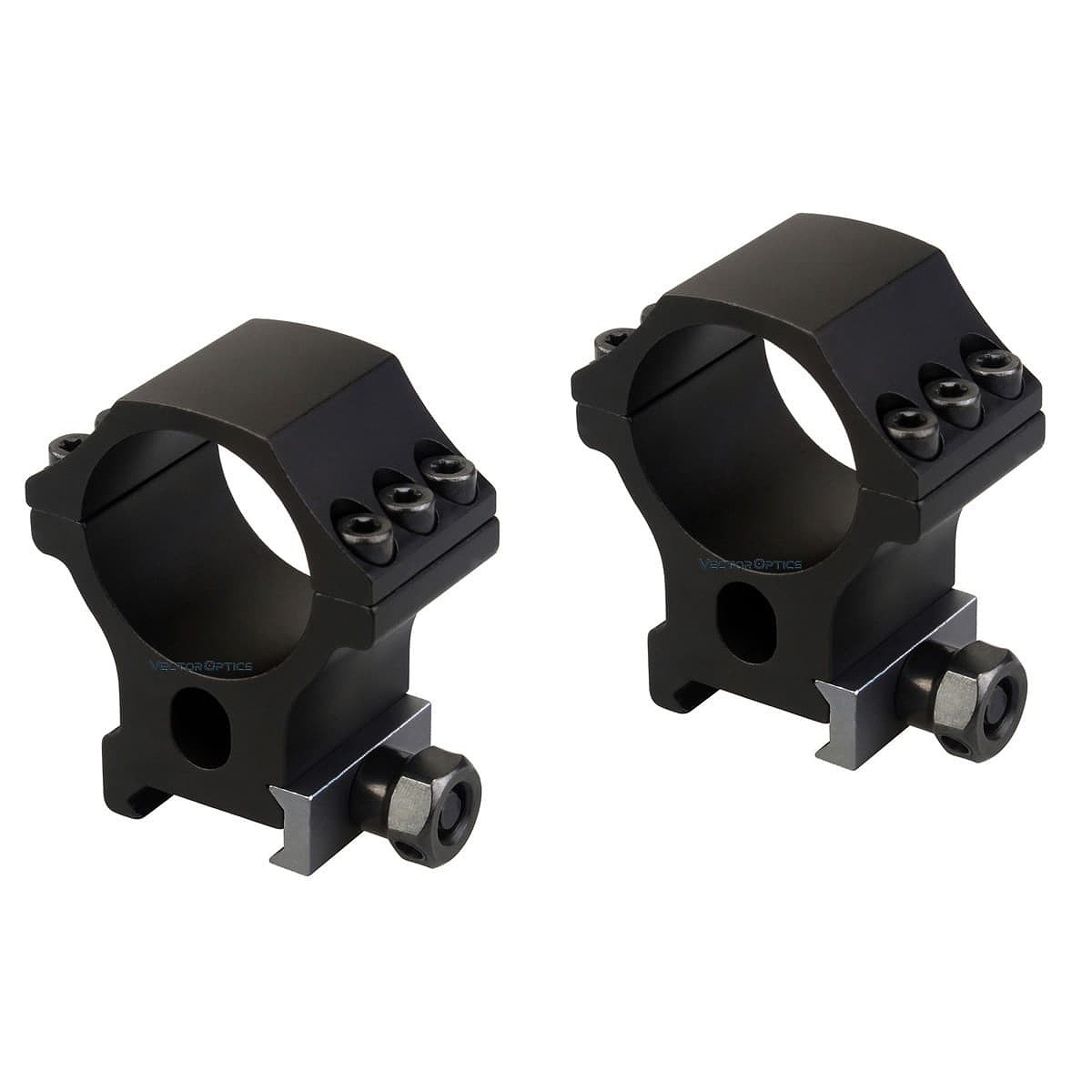

- Including items: 30mm tactical picatinny rings (default) or dovetail mount ring (on request only), cleaning cloth, instruction,

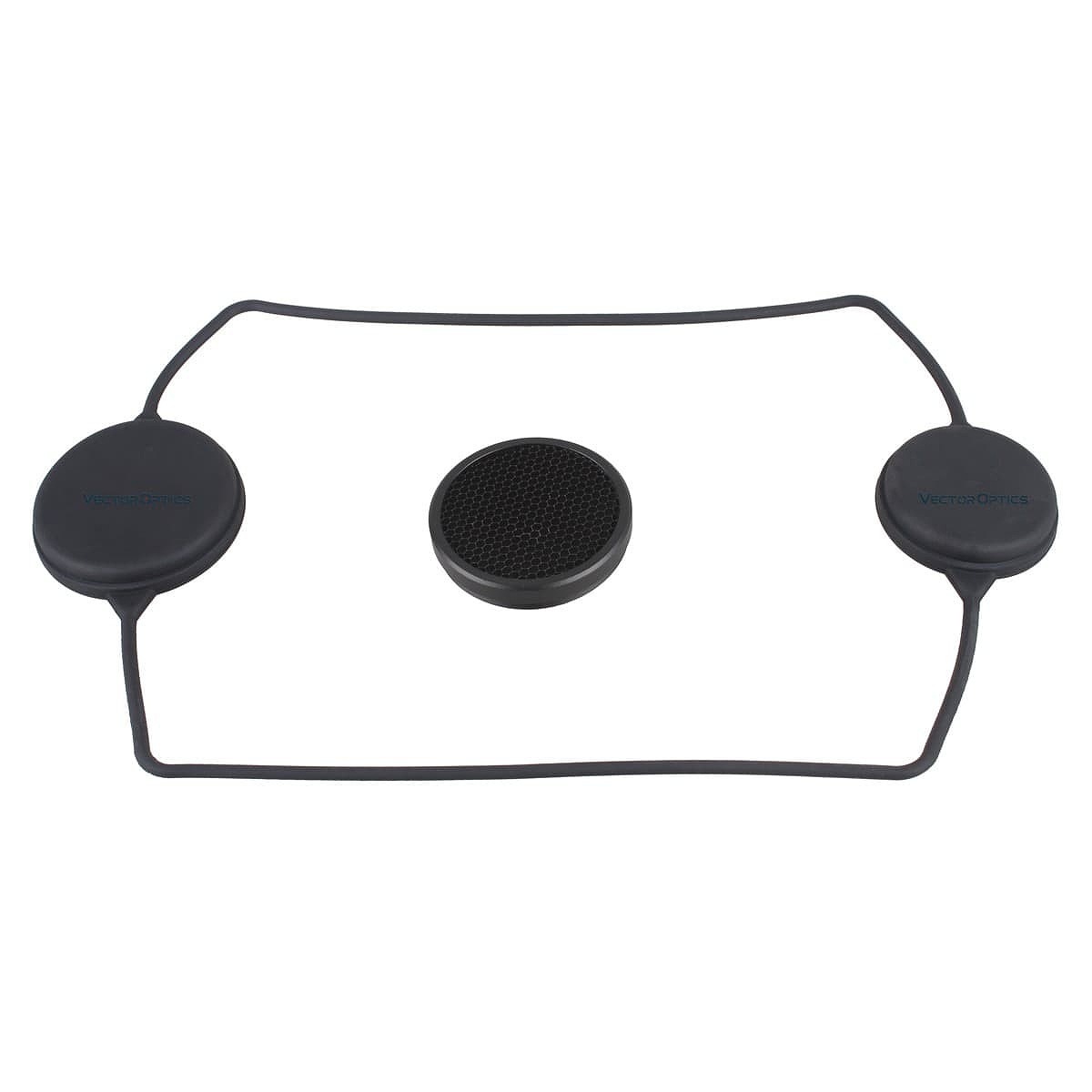

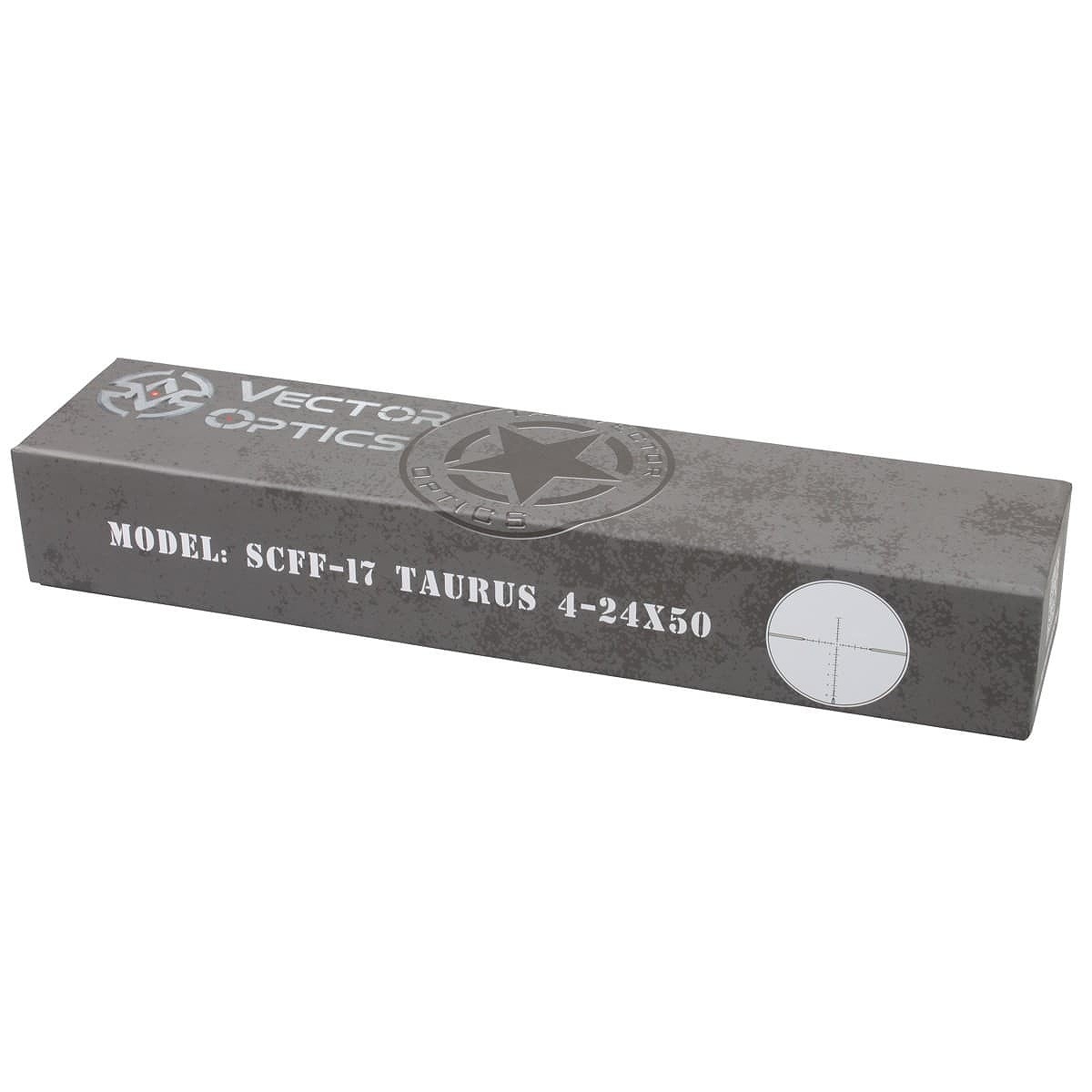

- lens cap, honeycomb filter sunshade, packed in nice retail box
レティクル
