概要

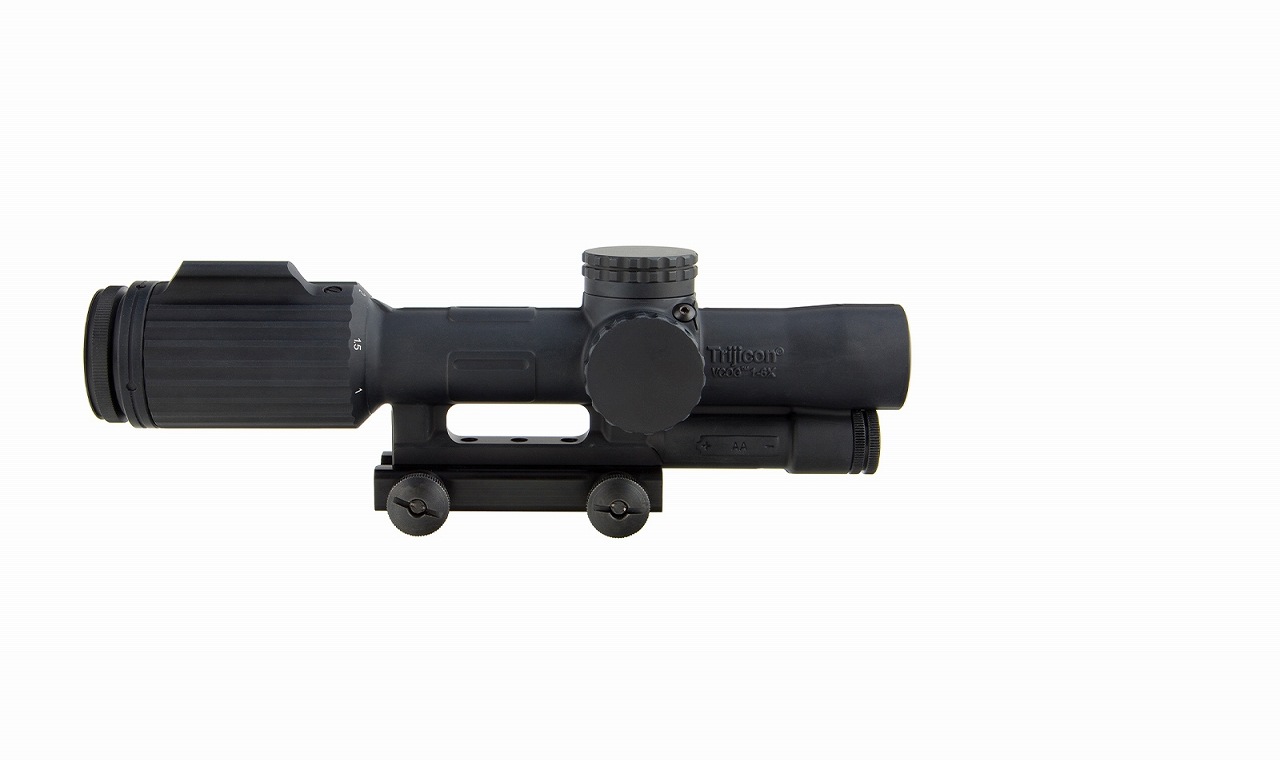

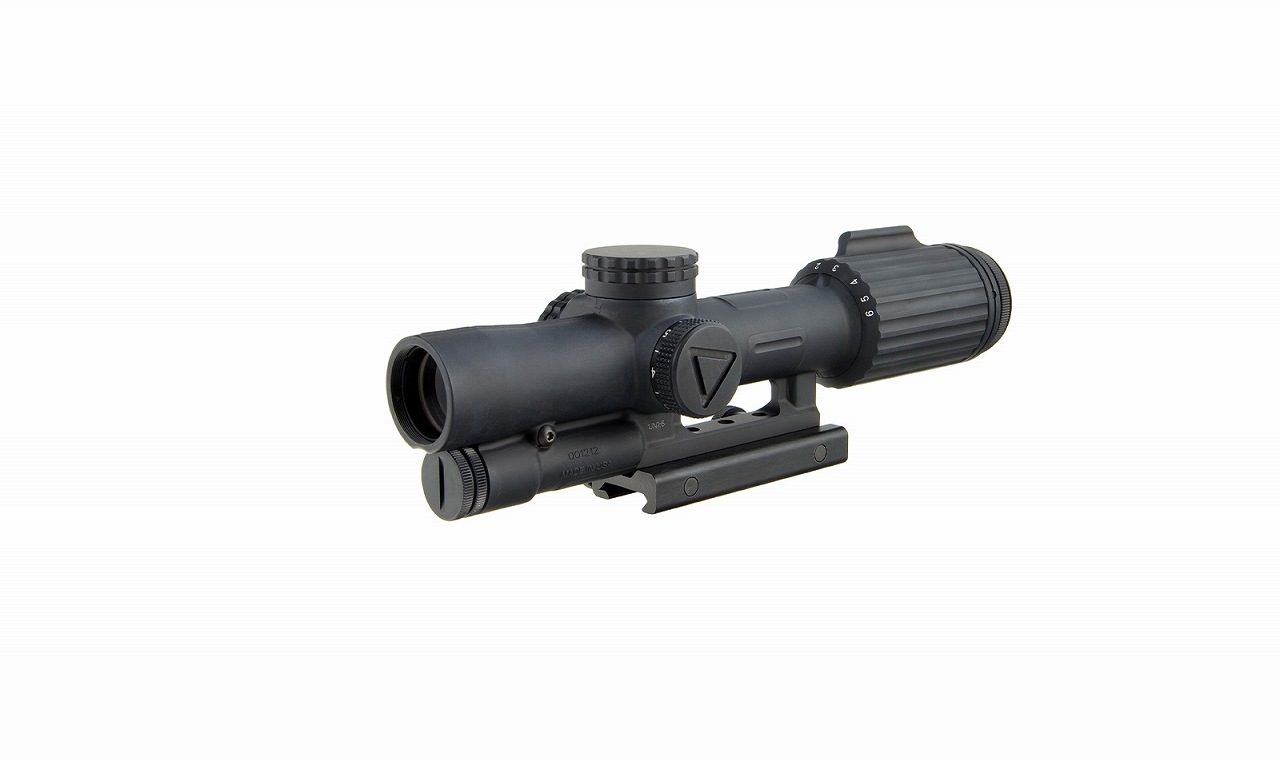

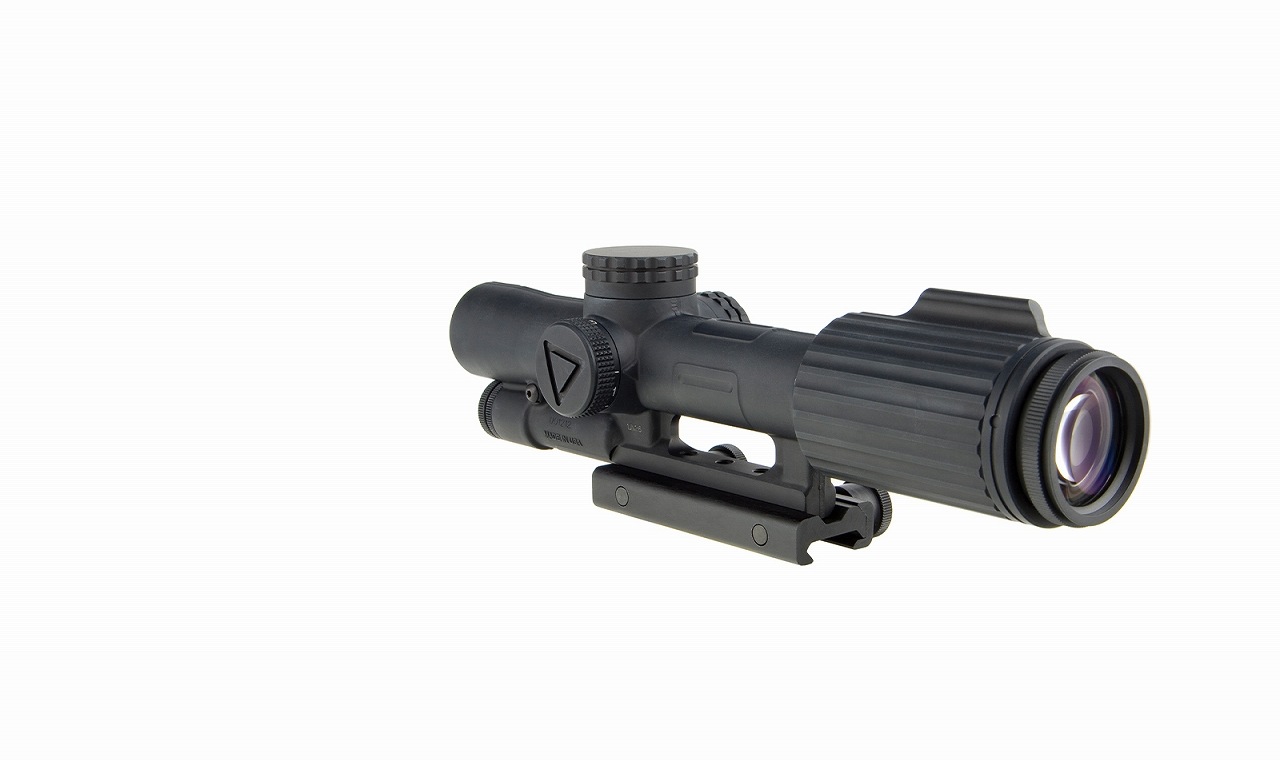

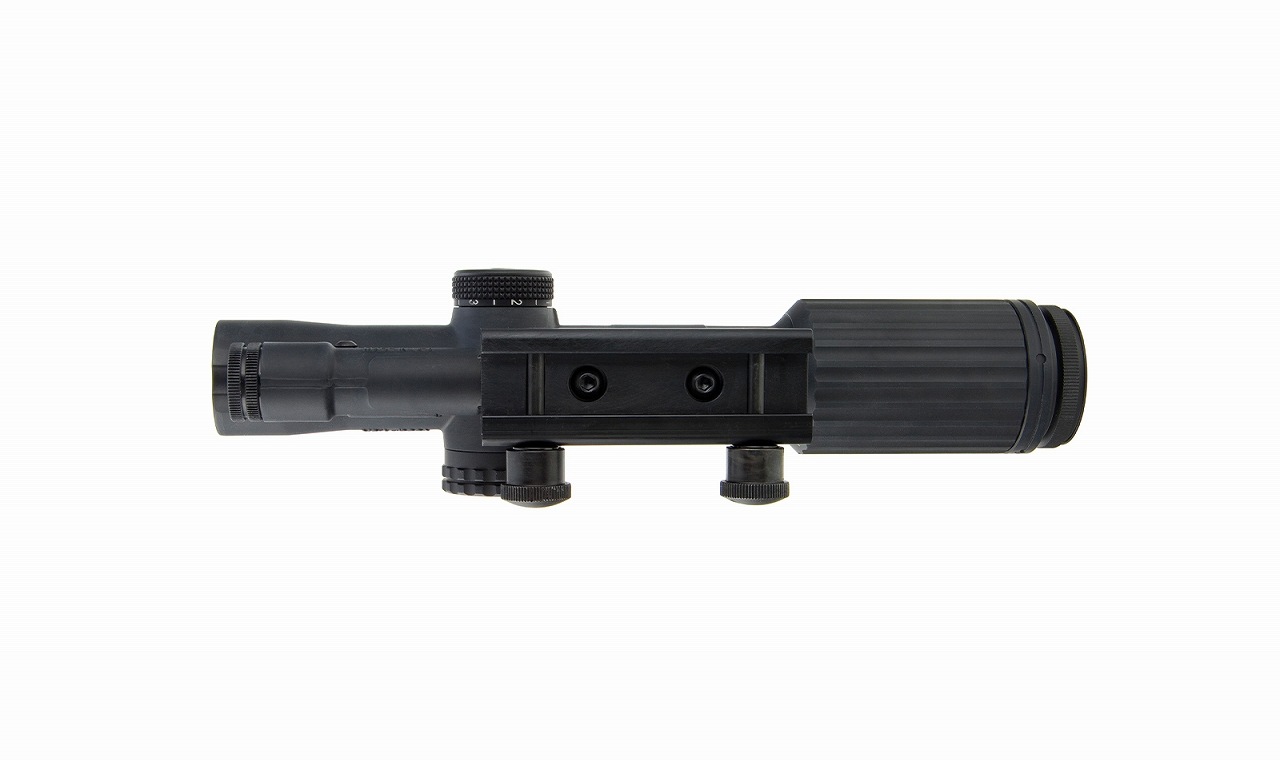

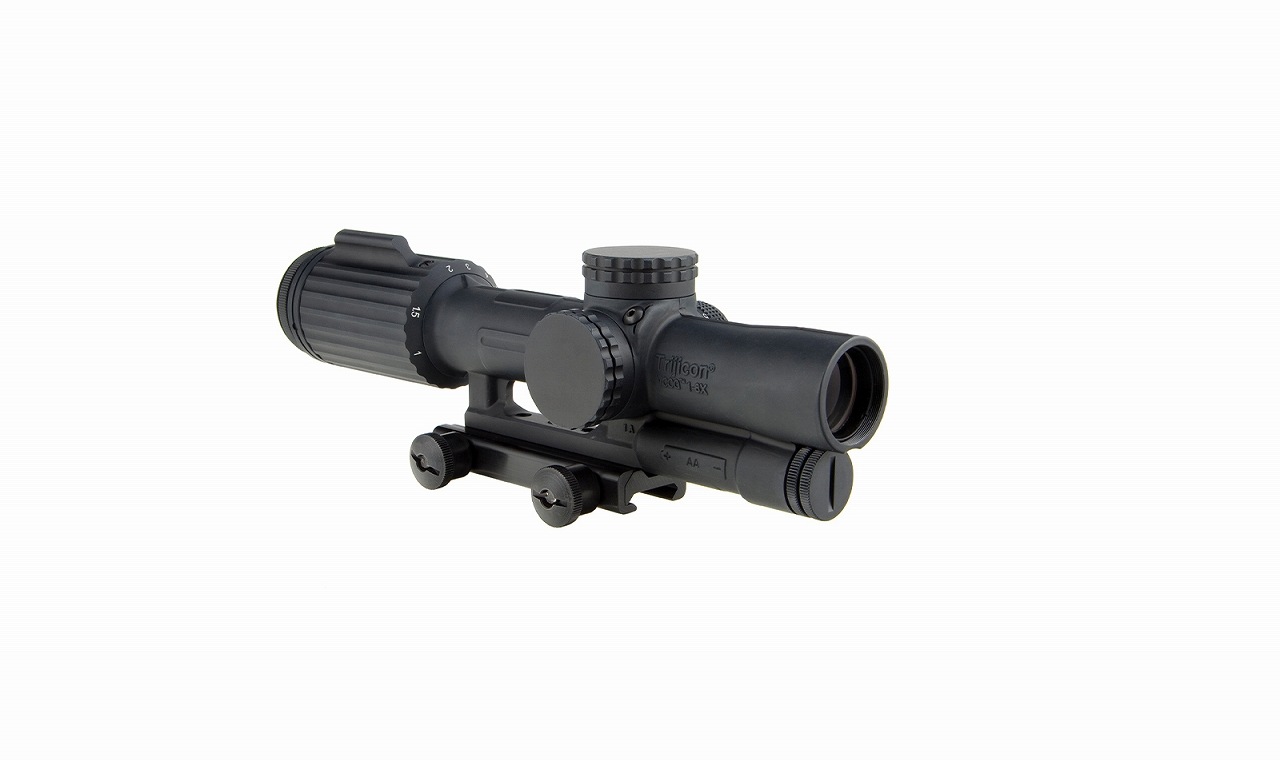

The Trijicon 1-6x24 VCOG? (Variable Combat Optical Gunsight) is a highly rugged, variable magnification riflescope designed for close quarter battle (CQB) and long distance marksmanship.

With a forged aircraft-grade 7075-T6 aluminum housing, the VCOG? is nearly indestructible.

Superior glass provides exceptional clarity and color with zero distortion.

The universal segmented circle/MIL reticle is designed for multi-platform use, accommodating multiple calibers, ammunition weights, and barrel lengths.

The first focal plane reticle allows subtensions and drops to remain true at any magnification, allowing the shooter to quickly and accurately apply the correct hold.

With ruggedized electronics, the LED reticle is robust enough for any application.

Powered by a lithium AA battery (provided), it has 6 user-selectable brightness settings.

The green LED boasts a battery life of 1,400 hours at setting 4 (constant on); the red LED has a 700 hour battery life.

An integrated dial fin allows easy rotation through the magnification range, and a constant eye relief means no head or stock position adjustments are needed.

Waterproof to 20 meters (66 ft.).

スペック

長さ x 幅 x 高さ10.05 in x 2.51 in x 2.73 in
(255.27mm x 63.75mm x 69.34mm)
重さ23.2 oz. (657.71g)
倍率1-6x
対物レンズサイズ24mm
レティクルパターンセグメントサークル / 十字線
レティクルカラー(日中)レッド
レティクルカラー(夜間)レッド
焦点面(Focal Plane)First
弾道補正レティクル (BDC)Yes
口径MIL
両目照準設計 (BAC)Yes
光源LED
電源 炭酸リチウム or アルカリ電池
電池寿命Red LED 700 hrs continuous use at brightness setting 4 or 6
調整単位1/4 MOA / クリック
調整幅エレベーション: 26.2 MIL ; ウィンテージ: 26.2 MILl; Per Revolution: 8 MIL
アイリリーフ4 in. (101.6mm)
生産終了0.41 in. - 0.15 in. (10.41mm - 3.81mm)
視野角 (度)18° - 3°
視野角 (feet)95 ft. @ 100 yds. (28.96m @ 100m)
マウントFlattop Thumbscrew Mount (TA51)
ハウジング素材鍛造アルミニウム
仕上げマットブラック
浸水深66 ft. (20m)

パッケージ内容

  • Thumbscrew Flattop Adapter (TA51)
  • リチウム炭酸電池
  • LENSPEN? (TA56)
  • Trijicon Logo Sticker (PR15)
  • マニュアル
  • 保証書
